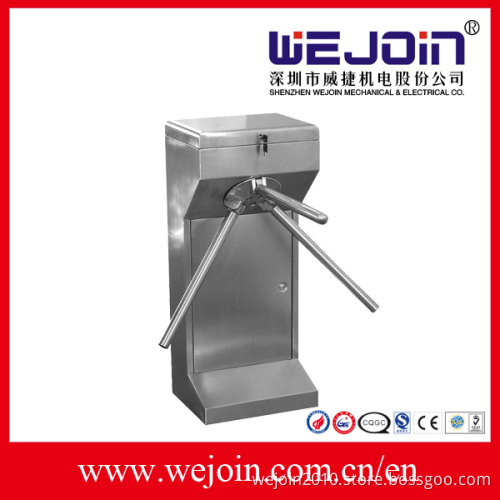

Turnstile With Stainless Steel Housing

Functions & Features
The integration of mechanical and electrical structure. The rotating platform is made by specific techniques. The stable mechanism can self-lock.
It can be bi-direction transit. The boom of the turnstile can be bi-direction or single-direction.
It can self-test for malfunction, which make it easy for maintain and usage.
Multiple working mode for choice. The card can be read in bi-direction and single direction. One direction can read the card, while the opposite direction can be realized by setting the button of the control panel or by PC software.
The boom can be down when the power is off and up automatically when the power is on.
It can be connect the Green and Red light in both direction. So the Green and Red light can be used to remind people whether it can be transited or forbidden to transit.
The flow rate calculator in both direction can show the flow rate.
The card reader can be installed in both direction. It supporta the WEIGNAD26/34 communication card reader.
The RS232 socket make it feasible to connect the computer. The internet LAN socket can also connect it to the computer.
Electronic soft-start function: Precise lock and unlock position photo electricity test function.
The communication protocol is complete and the means of control ling is very flexible.
Phonic module socket. When the card is read, the system can voice "pass" or "forbidden to pass" by different language.
The system can self-detect when the boom is stopped. When the card is read and the passenger has not passed in the specific time, the system will cancel the transit right of this time. (the transit time can be set by the administrator)
Technical Data
Power supply: 220V± 10%, 110V± 10%, 50/60Hz
Working voltage of motor: DC12V
Rated power: 50W
Working temperature: -25~+55
Rotating speed of the motor: 850 round/min
Dimension of the outline: 1235*280*1000mm
Length of the boom: 490mm
Largest endurance of boom: 80kg
Driving environment: Outdoor and indoor
Transit speed: 25~32 person/minute
Input socket: 12V electrical level signal >100ms, 12V impulse signal driving current > 10mA
Communication Socket: Standard RS232
