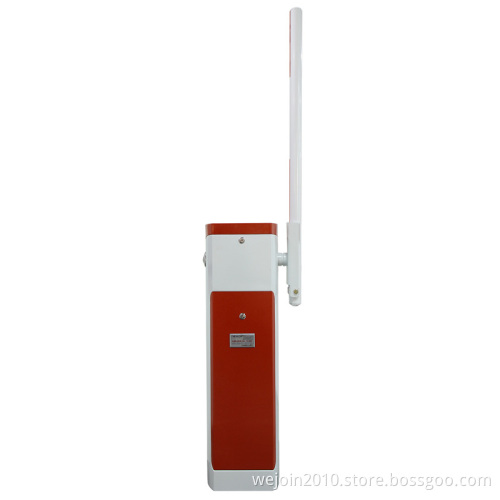

Traffic Automatic Boom Barrier Gate Switch Intelligent Car Parking

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union

Product Description

Unique appearance, nice color accomplish the modernizing housing
1.       Manual release to adjust the machine when power off
2.       Machine core with compression spring, effectively avoids the accidents caused by spring broken.
3.       Die-casting aluminum alloy motor, precision and good at thermal radiating.
4.       Motor cooling fan, solving the problem of heat-protection
5.       Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6.       reversing on obstacle
7.       Auto-closing
8.       Support the infrared photocell for anti-bumping(optional)
9.       support for the external and internal vehicle loop detector
10.   traffic light interface
11.   wire control(switch signal)/remote control(418Hz)
12.   RS485 communicational module to realize the intelligent management for the passing
13.   Bi-direction passing, can be install both on left and right side
14.   LED display
15.   Integrated LED traffic light
machine core
Traffic Automatic Boom Barrier Gate Switch Intelligent Car Parking

Working environment and data
1. Mechanism temperature   -25degree centigrade+85 degree dentigrade
2. Control board temperature   -20 degree centigrade+85 degree centigrade
3. Power supply 220V±10%   50/60 Hz
               110V±10%   50/60 Hz
4.Rated power 120W
5.Relative humidity ≤90%
6.Remote control ≥30M
7.Net weigh 60 Kg
