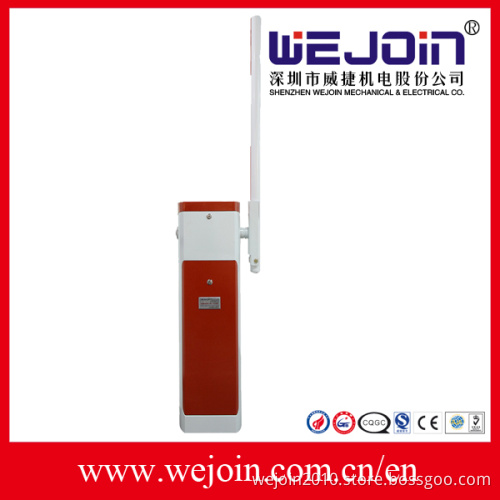

Quick and Stable Movements Traffic Barrier

1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring broken.
3. Die-casting aluminum alloy motor, precision and good at thermal radiating.
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the infrared photocell for anti-bumping(optional)
9. Support for the external and internal vehicle loop detector
10. Traffic light interface
11. Wire control(switch signal)/remote control(418Hz)
12. RS485 communicational module to realize the intelligent management for the passing
13. Product model number WJDZ101
Working environment and data
1. Mechanism temperature -25centigrade+85centigrade
2. Control board temperature -20+85centigrade
3. Power supply 220V± 10% 50/60 Hz
110V± 10% 50/60 Hz
4. Rated power 120W
5. Relative humidity ≤ 90%
6. Remote control ≥ 30M
7. Net weigh 60 Kg
