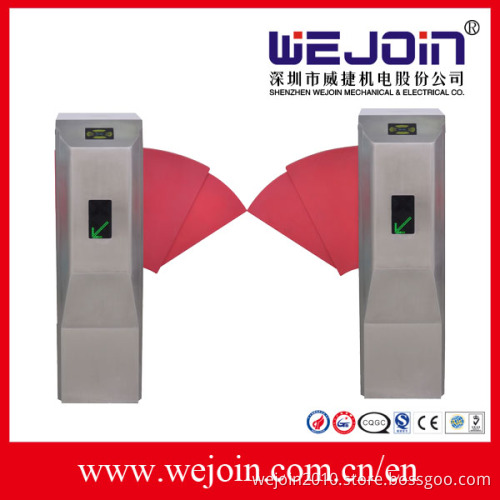

Stainless Widen Flap Barrier for Commercial Use

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T

Product Description

functions and featuress
1.       a compact electro-mechanical design with unique drive and a self-lock mechanism
2.       automatic detection for malfunction
3.       input interface for dry contact and switch signal connection
4.       adjustable auto-delay closing
5.       infrared photocells for safety access
6.       alarm for unauthorized access and no access against passenger flow
7.       anti-reversing passing
8.       auto closing when power on
9.       auto open and free access when power off
10.   adjustable access directions
11.   emergency interface available
12.   traffic light indicating passenger access

core for the flap barrier
Stainless Widen Flap Barrier for Commercial Use

  Technical data
1. Housing dimension: bridge type bevel angle 1400*270*1000mm
2. Flap arm length: 275mm
3. Max arm width: 900mm
4. Housing material: stainless steel 304
5. Power supply/frequency: AC220V±10%, 50HZ
AC110±10%, 60HZ
6. Drive motor: 12V direct current brush motor
7.     Flow speed: 25~30/minute
8.     Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).
9.     Opening and closing time: 0.5 minute
10. Power on and reset time: 3s
11. IP protection degree: IP 32
12. Working environment:
Inner and outer (with shelter)
Temperature: -25 Centigrade~+50 centigrade
Relative humidity: ≤90%
