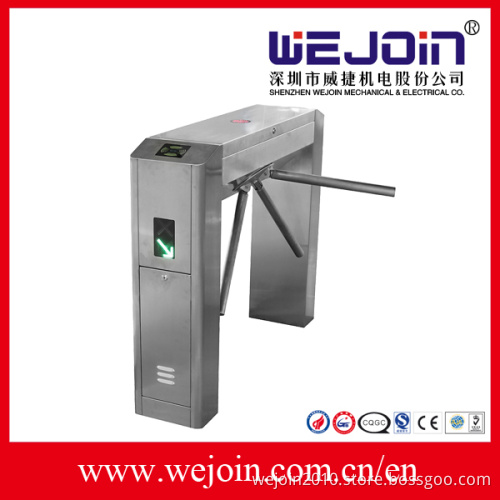

Easy-to-Use, Robust Tripod Turnstiles

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union

Product Description

functions and features
1.       Stainless steel housing
2.       Bi-direction passing, the arm can rotate from one direction or two directions(optional)
3.       Adjustable working mode, can be two way passing or one way passing, and the other is prohibited
4.       Arms auto drop when power off
5.       Arms auto rise up when power on and auto drop on obstacle
6.       Traffic light indicator
7.       Wingen 26/Dry contact, is compatible with smart card for access control
8.       Photoelectric inspection
9.       If the passenger does not pass in valid time, the passage will lock up, and the valid time is adjustable
10.   Passenger counter.
core for the turnstile
Easy-to-Use, Robust Tripod Turnstiles

Technology data
1.     Power supply/frequency: AC220V±10%, 50HZ
AC110± 10%, 60HZ
2.     Working voltage: DC12V
3.     Rated power:50W
4.     Working temperature: -25centigrade ~+55 centigrade
5.     Relative humidity: ≤90%
6.     Motor speed: 850 times/minute
7.     Dimension: bridge: 1235*280*100 type: WJ-TS112
            Vertical: 420*330*980 type: WJ-TS122
8.     Length: 490mm
9.     MAX boom endurable: 80kg
10. Boom working force: 4kg
11. Working environment: inner and outer
12. Flow speed: 25~30/minute
13. Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).
14. EM signal interface, dry contact (COM NO)..
15. Alarm input interface:DC12V
