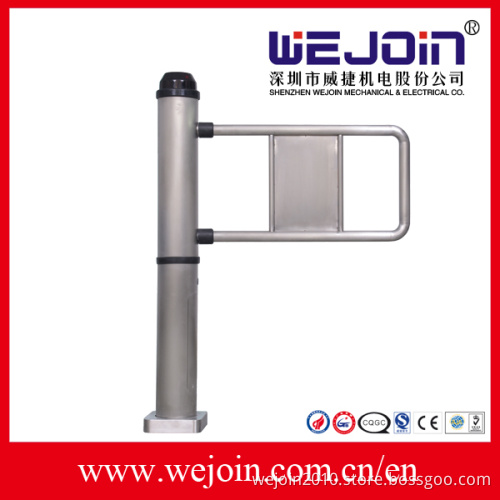

Full-Automatic Swing Barrier, Double Type (WJBZ202)

Operation of swing barrier
1) Two direction running / One direction running.
2) Opening/Closing time: 2.5 seconds.
3) Close automatically after adjustable time delay.
4) Run to the reverse direction when the operation blocked.
5) Keep open/close status when the power supply failure.
Can connect various access controllers. Such as IC/ID reader/Writer, button controller, barcode controller, code controller, fingerprint controller, computer and so on. And be made of 304 Grade Stainless Steel
Technical Specifications
1) Dry contact: DC12V, 10mA
2) Computer Interface: RS485 interface
3) Pulse voltage signal: More than 100ms
4) Passageway width: 1200mm
5) Power supply: AC220/AC110, 50Hz/60Hz
6) Operating temperature: -15~+70
7) Relative Humidity; 90%
8) Arm length; 600mm
9) Dimension: 168*1050mm
10) Weight: 65KG/Pair.
