Lithium-Ion Battery Packs 7.4V 6000mAh 18650

Get Latest Price

Payment Type:: L/C, T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Ningbo
Payment Type:	L/C, T/T, Paypal

Product Description

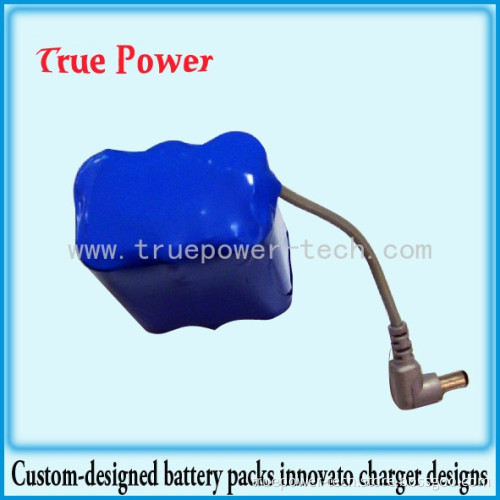

7.4V 6000mAh (18650*6) with PCB&Fuel guage display

Packing:
. 7.4 V Li-ion rechargeable battery made of six cylindrical 2000 mAh 18650 cells with PCB and polyswitch for full protection ( 3 parallel / 2 series)
. The battery pack is wrapped by heavy duty heat shrinked tube
. Fuel Gauge for PCB of 7.4V Li-ion Battery Pack (2 cells pack) is installed on surface of battery pack
Voltage: 7.4V(working) 8.4V(peak) 5V(cut-off)
Capacity: 6000mAh (44.4wh)

Protection:
One PCB(8A) installed with the battery pack and protects the battery from
. Overcharge(>12.6V)
. Overdischarge(< 7.50V)
. Over drain (>8 AMP)
. Short circuits
7 AMP polyswitchhes installed to limit max. Discharging current at 9A and to protect wrong polority
Prewired: 6' length 18 Awg wires installed in battery pack oithout connector
Max. Discharging Rate: 7 AMP limited by two polyswitch
Dimensions: (LxWxH) 57 x 37 x 74mm
Weight: 340g
