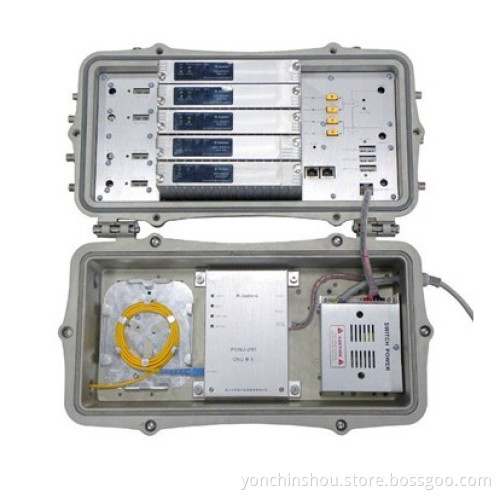

EPON+EOC Cable-Bridge Switch ECSS4F-A
- Payment Type:
- T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Hebei, China |
|---|---|
| Payment Type: | T/T |
Product Description
Product Description
Complies with the IEEE 802.3ah, IEEE802.1, Homeplug BPL, Homeplug AV
Embedded 1*ONU, 4*EOC Headend, 1* NMS module, 1*1G switch backplane and CATV(RF) input
The ONU has 4 Ethernet output, each output will be modulated to 2-30MHz signal via independent 4*EOC headend
Support 4 CATV signal input, and 4 independent output mixed CATV and modulated Ethernet Signal via Coaxial Cable
RF output >= 110dBuv
CATV bandwidth: 47 MHz~1000 MHz, Modulated Ethernet bandwidth: 5-30MHz.
Allowance RF Link Loss more than 60dBuv between output of ECSS4F-A and user terminal
Support Broadcasting Storm Restrain, ACL access control
Epon transmitting 20Km, Optical receiving sensitive -25dBm
Maximum Bandwidth of MAC 4*100Mbps, and High physical bandwidth to 240Mbps
Multi-Carrier OFDM+TDMA, Support Multi-service
SNMP Net-management system
Embedded 1*ONU, 4*EOC Headend, 1* NMS module, 1*1G switch backplane and CATV(RF) input
The ONU has 4 Ethernet output, each output will be modulated to 2-30MHz signal via independent 4*EOC headend
Support 4 CATV signal input, and 4 independent output mixed CATV and modulated Ethernet Signal via Coaxial Cable
RF output >= 110dBuv
CATV bandwidth: 47 MHz~1000 MHz, Modulated Ethernet bandwidth: 5-30MHz.
Allowance RF Link Loss more than 60dBuv between output of ECSS4F-A and user terminal
Support Broadcasting Storm Restrain, ACL access control
Epon transmitting 20Km, Optical receiving sensitive -25dBm
Maximum Bandwidth of MAC 4*100Mbps, and High physical bandwidth to 240Mbps
Multi-Carrier OFDM+TDMA, Support Multi-service
SNMP Net-management system
