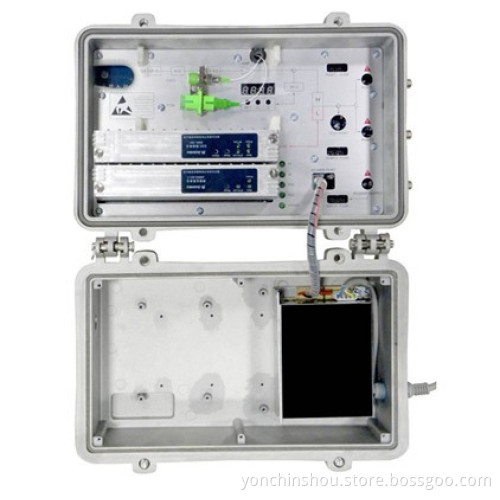

EPON+EOC Cable-Bridge Switch (ECWS4F-A)

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China
Payment Type:	T/T

Product Description

Complies with the IEEE 802.3ah, IEEE802.1, Homeplug BPL, Homeplug AV
Integrated each of ONU, EOC Headend, CATV Optical receiver, NMS module and 1G switch backplane
Input single or double fiber (confirm when order), 2 RF Output mixed CATV and 5-30MHz modulated Ethernet signal via Coaxial Cable
RF output >= 110dBuv
CATV bandwidth: 47 MHz~1000 MHz, Receiving optical power -5- +1dBm
Modulated Ethernet bandwidth: 2-30MHz, Optical Sensitive: -25dBm
Allowance RF Link Loss more than 60dBuv between output of ECWS4F-A and user terminal
Support Broadcasting Storm Restrain, ACL access control
Epon transmitting 20Km, Optical receiving sensitive -25dBm
Maximum Bandwidth of MAC 100Mbps, and High physical bandwidth to 240Mbps
Multi-Carrier OFDM+TDMA, Support Multi-service
SNMP Net-management system
