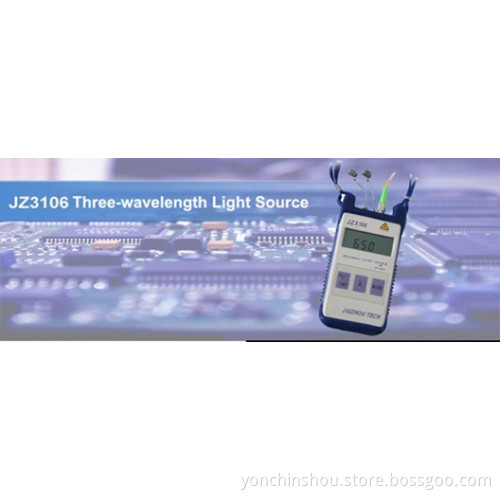

JZ3106 Three-Wavelength Light Source

JZ3106 Series Three-wavelength Light Source integrates JZ3104 Dual-wavelength Light Source and JZ3105 Visual Fault Locator into a versatile handheld test instrument, catering to more convenient application demands for optical fiber network construction and maintenances. JZ3106 series including two types of three wavelengths light source:
JZ3106A: 650nm, 1310nm and 1550nm, for single-mode measurement and,
JZ3106B: 650nm, 850nm and 1300nm, for multi-mode measurement.
650nm red light is very useful in field applications, such as patchcord and pigtail inspection, fiber identifying for break-out or fan-out pigtails and so on. JZ3106 offers more than 1mW 650nm light output through 650nm laser. In addition, JZ3106A and JZ3106B provide two other wavelengths that are commonly used in single-mode or multi-mode fiber networks.
JZ3106 could be used together with JZ3203R series Handheld Power Meters as a powerful test kits with wide dynamic attenuation range, stable output power and stable output wavelength.
Features
Locates breaks, Micro-bends even through jacketed fibers
End-to-end fiber identification
Stabilized Output Power
High Reliability
Applications
@ Telecommunication networks
@ CATV networks
@ Cabling systems engineering
@ Research and education
