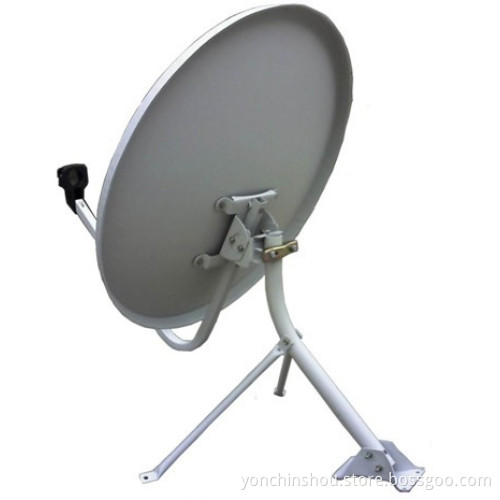

Ku-Band Satellite Dish - 0.75m

Technical Specifications
Reflector Type
Offset
Reception Frequency
10.7 - 12.75GHz
Offset Angle
22.7°
Apperture Efficiency
About 65%
Gain @ 12.25&12.50&12.75 GHz
36.90@12.25GHz, 37.01@12.50GHz, 37.35@12.70GHz
Focus Length
48.75 cm
F / D Ratio
0.65
Azimuth Alignment
Fixed, 0-360°
Elevation Alignment
5-85°
Operating Temperature
-25 -+55
Wind Loading Capacity
Operating Wind
72 km/h
Survival Wind
144 km/h
Mechanical Specifications
Material
Steel
Coating Type
Polyester powder coating
Coating Thickness
60-80 µ M
Long Axis
810 mm
Short Axis
750 mm
Mount
Triangle ground and pole/wall optional
