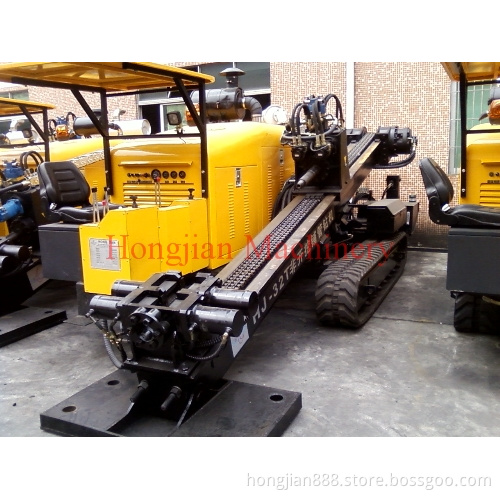

HJ-32T Horizontal directional drilling machine
USE:
HJ-32T Horizontal directional drilling machine is used for cables laying underground. The machine could drill the hole and get through the road, railway.airport runway,river without dig and install.
CHARACTERISTIC:
The disel engine is Cummins, with strong power, reliable and stable performance. and most of the hydrulic parts are imported.
It is equipped with durable rubber belts of crawlers, the rig is suitable for moving in the city. And the rig could get on and off standard trailer on itself and it is quick for transportation and allocation
Suitable for long-distance, large diameter pipelines.
WORK ABILITY:
It could drill and pullback the steel pipe(dia:108mm) which length is about 450M. (Remark: The specific length will depend on the soil condition).
The machine could lay the cables and pipes such as steel pipe, PVC and PE pipe. The Max. diameter of the pipe could be 1000mm.
WARRANTY AND SEVICE
1 year warranty, and we could offer after sales person to train our client how to use the machine.
Suitable for long-distance, large diameter pipelines.
USE:
HJ-32T Horizontal directional drilling machine is used for cables laying underground. The machine could drill the hole and get through the road, railway.airport runway,river without dig and install.
CHARACTERISTIC:
The disel engine is Cummins, with strong power, reliable and stable performance. and most of the hydrulic parts are imported.
It is equipped with durable rubber belts of crawlers, the rig is suitable for moving in the city. And the rig could get on and off standard trailer on itself and it is quick for transportation and allocation
Suitable for long-distance, large diameter pipelines.
WORK ABILITY:
It could drill and pullback the steel pipe(dia:108mm) which length is about 450M. (Remark: The specific length will depend on the soil condition).
The machine could lay the cables and pipes such as steel pipe, PVC and PE pipe. The Max. diameter of the pipe could be 1000mm.
WARRANTY AND SEVICE
1 year warranty, and we could offer after sales person to train our client how to use the machine.
Suitable for long-distance, large diameter pipelines.
| Parameters Model | Unit | HJ-32T | ||||||
| Diesel engine model | Cummins | 6CTA8.3/C215 | ||||||
| Diesel engine power | kw | 160 | ||||||
| Max spindle torque | Nm | 12000 | ||||||
| Max pullback force | Kn | 320 | ||||||
| Max thrust force | Kn | 320 | ||||||
| Output rotary speed | r.p.m | 0~100 | ||||||
| Entry drill angle | ° | 3~25 | ||||||
| Max displacement of mud pump | L/min | 320 | ||||||
| Max pressure of mud pump | Mpa | 10 | ||||||
| Drill rod | mm | 73*3000 | ||||||
| Size of rig | mm | 6200*2250*2150 | ||||||
| Weight | kg | 8900 | ||||||
