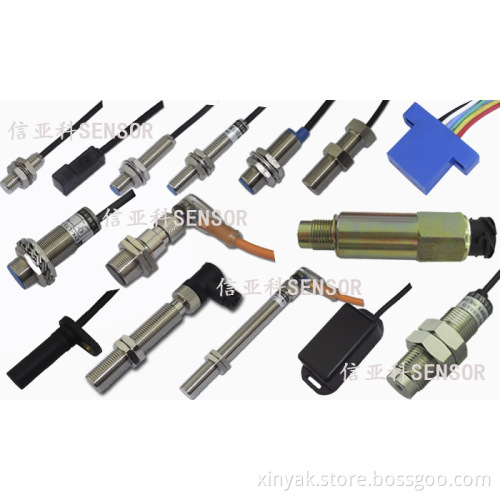

Gear Sensor, Hall Speed Sensor, Magnetic Speed Sensor

Typical usage:
Cement mixer barrel forward & reverse rotation monitoring
Product feature
1. Pulse signal (square wave), the phase difference is 90 degrees
2. Anti-jamming design, can stably work in harsh environments of vehicles or motors
3. Wide response frequency: 0-5kHz, 0-15kHz and 1-20kHz
4. Sealed package, good seismic resistance
5. IP67 waterproof, anti-oil, dust-proof, can work in poor condition;
6. Wide temperature range: -40-+80degree/ -40-+135 degree
7. Various sizes selection: M8, M10, M12, M14, M16...M30, Customized
8. Detection object: Disk or magnetic ring/ Standard gear or irregular gear/Modulus >1 uniform distribution gear/Modulus > 0.5 uniform or irregular gear 9. Sensing distance: 0-2mm (0-300mm optional)
10. Connection Method: 3-wire
11. Working Voltage: DC5~24V DC8~32V
12, Output Model: PNP, NPN, push-pull(optional)
13. Working Voltage: DC5~24V DC8~32V
14. Load Current: NPN20mA, PNP100mA
