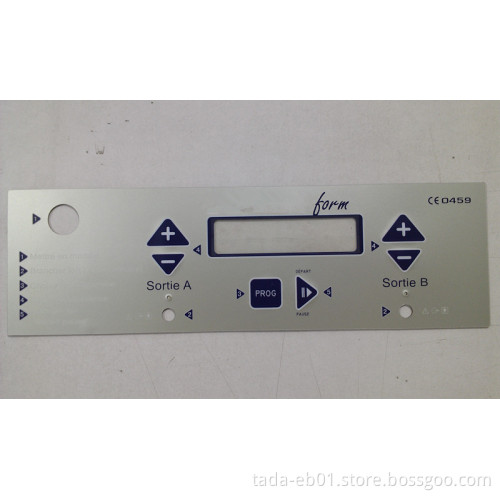

Membrane Keyboard (TD-M-CML-05)

Country of Origin:
China (mainland)
Primary Competitive Advantages:
Packaging
Price
Product Features
Product Performance
Prompt Delivery
Quality Approvals
Reputation
Service
Small Orders Accepted

Main Export Markets:
Eastern Europe
North America
MID East/Africa
Central/South America
Asia
Western Europe
Australasia
Key Specifications/Special Features:
Metal dome with embossing
Automatic
With female connector at tail
All keys are metal dome tactile style
Electrical parameters:
Maximum circuit rate: 100mA at 35V DC/1W
Contact resistance: 10 to 500Ω
Insulation resistance: 100MΩ /100V
Dielectric withstand: 250Vrms
Contact bounce: ≤ 5ms
Lifespan expectancy:
Flat type: ≥ 5, 000, 000 times
Tactile type: ≥ 1, 000, 000 times
Mechanical parameters:
Actuation force:
Flat type: 57 to 284G
Tactile type: 170 to 397g
Switch strokes:
Flat type: 0.1 to 0.5mm
Tactile type: 0.6 to 1.5mm
Temperatures:
Operating: -40 to 80° C
Storage: -40 to 85° C
Humidity range: 90 to 95% RH, 240 hours
Vibration: 20G
Customized colors and sizes are accepted
Dimensions: 100 X 90mm
Payment Details:
Payment Terms:
T/T in Advance
Minimum Order:
99 Pieces
Delivery Details:
FOB Port:
Shenzhen
Lead Time:
7 - 10 days
