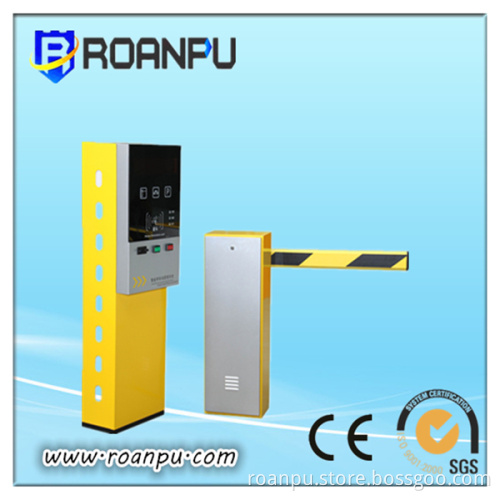

Parking Lot Management System Booms with CE

Parking Lot Management System booms with CE

Automatic card dispenser

Easy operation and wide range of application

Reusable and environmental protection

CE&ISO&OEM service


Introduction:

Roanpu-P80 series Parking management system adopt stable and

Mature data platform, apply to Windows2000WinXP OS and SQL

Server 2000 database etc., parking management system is used to

Control and monitor the information like the vehicle status of Entry

And Exit, status of barrier gate and so on. System design of three-

Layer CS architecture, the module of each layer can be updated and

Replace separately, which will effectively reduce the cost and simplify

The management. At the same time, date processing can be

Transferred from client to application server and database server,

Accommodate large-scale and complicated application requirement.

Parking management system has powerful data processing function.

Various control parameters for parking management can be set, such

As ID card detecting, ID card extend, picture contrast etc. User can

Inquiry the vehicle in the parking lot, different, different reports can

Be generated and printed from the system, so as to manage the

Parking lot effectively.

Technical:
1. Housing Size: 1300H× 440W× 340D(mm)
2. Housing material: Steel and Tempered glass
3. Color: Orange/ blue
4. ID card read/write time: ≤ 0.2S
5. ID card read/write distance: ≤ 10cm
6. Radio-frequency card read/write time: ≤ 0.2S
7. Radio-frequency card read/write distance: ≤ 10cm
8. Paper outing speed: ≤ 2S
9. Mode of communication: Base RS-485, Rear TCP/IP
10. Communication transmission distance: 1200m(RS-485)
11. Offline storage capacity: 30000 pcs (extendible)
12. Card capacity: 50000 pcs (extendible)
13. Blacklist capacity: 10000 pcs (extendible)
14. Data transmission speed: 4800bps/100M
15. Working Temperature: Minors 30° C to 70 ° C
16. Working environments: Indoor, outdoor
17. Relative humidity: ≤ 95% coagulation free

Function:
1) Multiple network mode, can realize remote data and image transmission;
2) 32-bit ARM dual-core processing technology;
3) Easy to install, debug and maintain;
4) IC, ID, bar code, RFID available in one control board
5) Nesting function available;
6) Extendible long distance read function;
7) Off-line working available;
8) Extendible plate-number identification and auto-printing;
9) Multiple charging mode, charging standards can be defined by the user;
10) Automatic card dispenser;
11) voice prompt available
12) Flexible system configuration, can be extended to multi-level parking lot management system;
13) waterproof, dustproof and rustproof case
14) Modular structure, high integration
