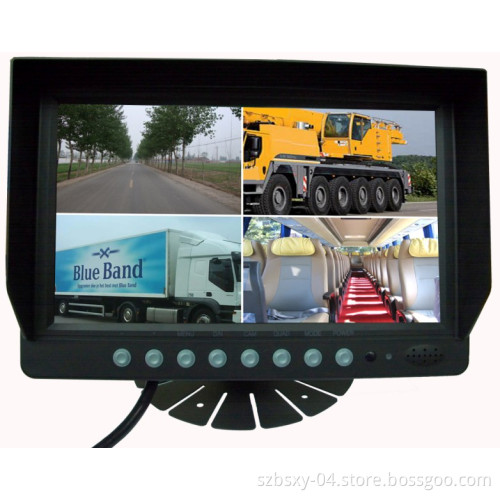

9 Inch Digital LCD Quad Optional Rear View Monitor (JY-M900Q)

JY-M900Q
Products featured function
Dimension: 9 Inch Digital Color LCD Quad monitor.
TV System: NTSC/PAL
Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German, Italian
Monitors can be optional with loudspeaker or not, users can adjust sound on the control
Support 4 cameras video simultaneous input
Support 4 cameras audio simultaneous input
Single, dual, triple, quad image for optional
Normal or mirrored picture can be switched separately on each camera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
The trigger delay time can be adjusted (1-5s) on each camera.
In standby mode, monitor will turn on automatically when triggered and will switch to the
Corresponding trigger camera image.
Working voltage: 12-32V, Self-protect of the DC voltage at the Short-Circuit
