KDV-136 Electromotive Cleaner

Thank you for your purchasing the KDV-136 Electromotive Cleaner from KOC, which, radically resolve the traditional difficulty of fiber end-face cleaning. Not only performs effective cleaning, KDV-136 also operates efficiently and conveniently, proving to be your best choice for fiber maintenance.

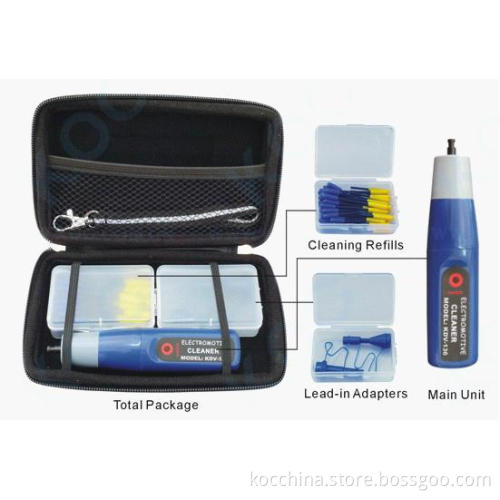

KDV-136 Overview

Cleaner Installation:
Break off the cleaner body, Put the batteries into it as electrode symbol suggested inside. Please be sure that part B is properly connected with part A where the carved "on" on part B1 is against the trail on part A.
Connect the P into the front end of part B ( No need to connect if LC/MU adapter is used).
Insert 2.5mm or 1.25mm refill (cleaning stick) into the rotation axis, Remove the dust cap the same time.
Connect the lead-in adapter in proportion.
Press the button "switch" to start to clean.
KDV-136 Lead-in Adapters
Not only have three types of adapters, covering all the cleaning modes, KDV-136 also concentrate different functions(one Lead-in adapter can clean both male and female type), distinguished from the traditional tools, bringing you a complete convenience for operating.
KDV-136 Cleaning Materials

Types: There are two types of Cleaning Materials: KDV-F25 / KDV-F15
KDV-F15 Refill(cleaning stick)
The materials from the front-end of stick are 0.5~0.8mm thick, madding from imported high-density glabrous fiber. It rotates with stick 80 transfer per second, sucking all the contamination from the end-face just within 3~5 s. No breakage, no slag, consecutive cleaning of 20 faces per stick even contribute to no repeated pollution, but please note that consecutive cleaning of 50 faces per stick may
Relatively weaken the performance.
Note: (Please read carefully to have a cleaning effect)
Insert the cleaning stick to the rotation axis, revolve it till be properly aligned with trapezoid inside end.
Also note that the materials should be carefully protected before the removal of the protective sleeve from the front-end of stick.
Cleaning Sticks are made from specific materials and closely processed, please note that any liquid as alcohol / cleaning fluid et al should be avoided.
Repeated cleaning times can be 20~50 per stick. More sticks are required for the end-face with oil contaminations. Replacement of sticks is necessary if cleaning materials are damaged or come off.
For the rust-like contaminations, following steps are suggested: DIP some alcohol to the stick to clean several times till contaminations are swelled and removable. Use another stick without alcohol to clean several times afterwards. Have a final cleaning with a third new stick.
Cleaning Stick has no use to the end-face scratched or nicked, exchanging the connector is suggested.
Use the FVO-600A series microscope to inspect and check the cleaned end-face.

KDV-136 Application & Operation
Note: Each step should be carefully operated to avoid any laser signal and protect your eyes.
To clean the 2.5mm ferrule fiber end-face
Male ferrule cleaning
Working Steps:
Insert the KDV-F25 cleaning stick, fix the 2.5-M/F lead-in adapter, remove the dust cap, rotate the ON-OFF part against the trail mark.
Insert the male ferrule into the adapter, press slightly to promise a normal use.
Press the button 5s to complete the cleaning.
