Kdv-236 in-Adaptor Ferrule Cleaner

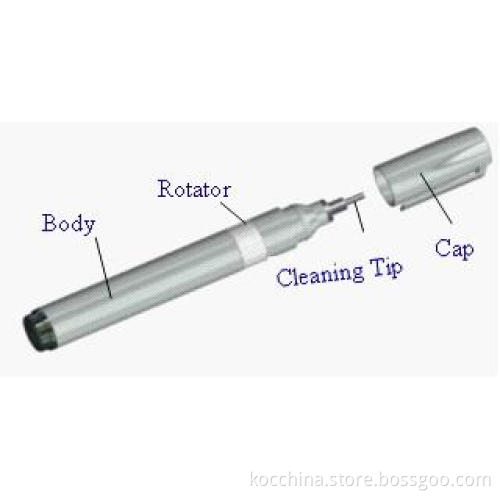

Nsert Cleaning Tip inside adaptor:
KDV-236-1.25 is precisely designed for the depth of LC, MU and
KDV-236-2.5 is for SC, FC, ST type adaptors each.

Turn Rotator:
Turn the Rotator just 1~2 click clockwise. For better cleaning, rotate body around 2~3 rotations before turn Rotator.

Remove and Cap:
If not in use, do not remove the cap to prevent any contamination.

Cleaning times:
The cleaning can clean more than 500 times if you use reasonably.

Attention:
1. Do not push ferrule by KDV-236 Tip (just touch is enough) and do not turn over two(2) click: The Rotator should be turned just 1~2 click clockwise and the pressure should be pushed just like touch when you turn the Rotator. Warranty void if cleaning fiber is broken by over clicks & pressure.
2. Use the KDV-236-1.25, when the cleaning fibre have too much or lacerated, please turn the Rotator several circle before cleaning the optical connector port. Otherwise, may cause the Cleaning fibre broken.
3. The cleaning performance may be effected by contamination and environmental factors. So you Must clean several times.
4. This unit is disposable so please dispose the unit as an industrial waste when you feel the Rotator Does not turn smoothly or when the cleaning fiber is finished. (Or can send it to the supplier for Exchanging the gifts).
5. For the better cleaning, rotate body around 2~3 rotations before turn Rotator. The ferrule Cleaning could be cleaned more effectively by 1st step (by body) and 2ND step (by rotator) both.
6. This cleaner cleaning inefficient when the optical connector port was broken or corrosive.
