Product Description

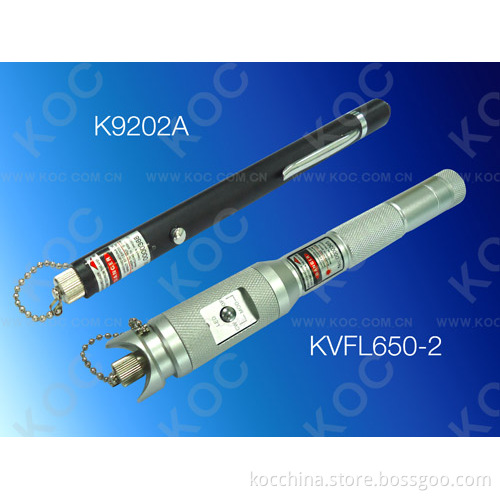

K9202A KVFL650-2 hand-held Visual fiber fault locator is an intelligent micro-processor. It can be used to identify general optical fibers and locate the fault of Single-mode & multimode optical fibers. It is one of the basic maintenance tools for optical fiber network, LAN, FDDI, ATM optical fiber systems and telecommunication network system. The locator adapts the advanced international micro-processing software & hardware technologies, micro-electronic technologies, SMT technology. It provides perfect performance, high reliability with its small size and convenient operation.

The battery for the locator is regular AA battery. It's easy for fieldwork.

Features
High Luminosity 635nm LD
Generating continuous wave light or
Modulated flashing light
Use regular battery, convenient for fieldwork.
Small size, easy carry

Specifications

P/N	K9202A		KVFL650-2
Light Emitter	LD	FP-LD
Operating Wavelength	650nm±10nm
Spectral width	≤5nm
Fiber length tested	3~5km		9~11km
Output power(9/125 SMF)	≥-3dBm		≥0dBm
Output Adaptor	FC,2.5mm universal type
Operating Environment	0 ~+55ºC,0%~95%,RH(no dew)
Storage Environment	-15 ~+65ºC,0%~95%,RH(no dew)
Battery	Two pieces of AA Alkaline battery, continuous working time>24 hours
Dimension & Weight	φ12×158mm (w/o carrying case), ≤100g( w/o battery)
