Product Description

1. Low insertion loss
2. High return loss
3. Epoxy-free in optical path

Introduction

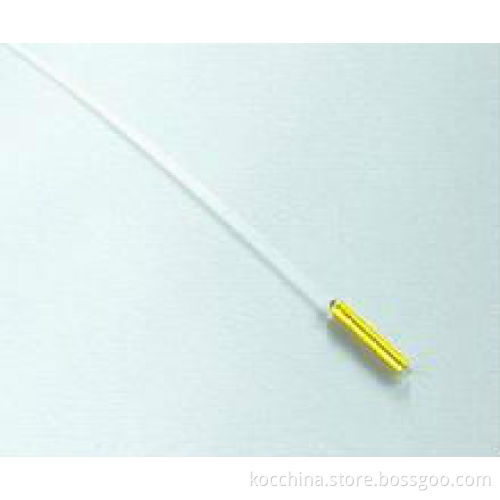

Collimator is made up by capillary pigtail and G- Lens which aligned accurately. By the self Focus of G-Lens, collimator can realizable to Out put a parallel beam or input the parallel Beam into the fiber. It is widely used in optical Module or optical researching and lab field.

Applications
WDM device and module
Isolator
Circulator
Optical researching

Parameters	Single fiber		Dual fiber
	Premium	A Grade	Premium	A Grade
Operating Wavelength (nm)	1310/1550 ,1260~1620 or Customized		1310±20,1550±20
Insertion Loss (dB)	≤0.18	≤0.20	≤0.30	≤0.35
Return Loss (dB)	60
Receive angle(degree)	±0.15
Facula diameter(mm)	<0.5
Optical Power Handling (mw)	≤500
Operating Temperature (° C)	-10ºC~+70ºC
Storage Temperature (° C)	-40ºC~+85ºC
Fiber Type	SMF-28,MMF50/125um or MMF62.5/125
Fiber Length (Min.)	1 Meter Each End 0.25mm or 0.9mm
Package Dimension (mm)	φ2.7810mm or φ3.210mm or customized

Ordering Information
CL _x-x-x-x-x-x

CL	Type	Wavelength(nm)	Grade	Pigtail type	Fiber Length	In/Out Connector
CL	SF=Single fiber DF=Dual fiber	13=1310 15=1550 35=1310/1550 1216=1260~1620	P=Premium A=Grade A	1=Bare Fiber 2=900um Tight Buffer 3=φ3mm Cable 4=2.0mm Cable	1=1.0m 2=1.5m 3=other	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC/PC 7=LC/APC
