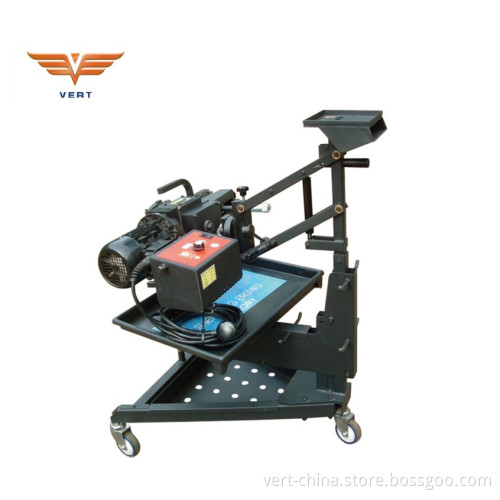

Car Brake Lathe/Brake Lathe/brake disc lathe/Brake lathe machine OTCL450A
Provide variable speed and rotation torque during brake machining is a characteristic of this equipment.
The spindle rotation speed swivels within a certain range, this can eliminate the mechanical resonance and enable the machined surface to be smooth.
The 1.5-hp powerful motor can machine brakes for4-wheel drive automobiles, 1t trucks and even medium duty truck's rear wheels easily.
The micro-round cutter blade can undergo knock, it can be rotated by an angle after it has been worn to elongate its service life.
The brake lathe can be rotated180° To machine the automobile at its another side. Lt is very convenientin use because it is unnecessary to remove the bolts and move the arbor.
Theunique twin-arbor design makes it be adjusted conveniently and the machining with high efficiency.
Semiautomatic operation system.
Automatic safety and shutdown system.
Fast connection system.
Conform to be the demands of use. E48
Technical Datas:
Maximum brake turning diameter: 14.1 inches. (360mm)
Maximum brake thickness: 2.00 inches. (50mm)
Maximum brake friction surface width: 3.00 inches. (76mm)
Feed distance: 4.30 inches. (110mm)
Spindle rotating speed: Variable speed within a range of 30-120 RPM
Motor power: 1.5HP (1.1kw) @ 3450 RPM
Dimensions: 31x18x15 in. (Lx W x H)
Net weight: About 41 kg (Excluding trolley)
Lubrication: Gear box: SAE 20W50 motor oil
Carriage slide: Light motor oil
Carriage screw: EP grease
Power supply: AC 220V, 50/60 Hz, 15A
