4 Channel Moblie Hard Disk Video Recorder

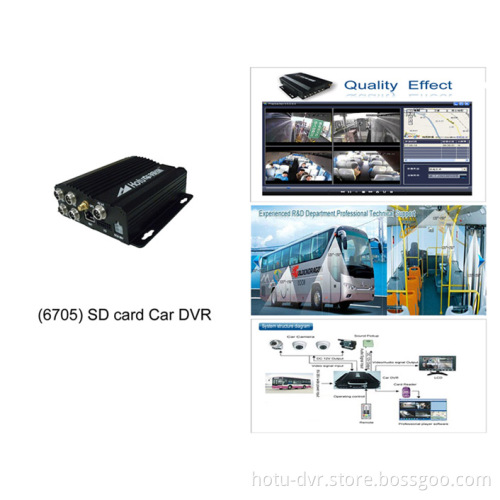

SD Card 4 channel moblie Hard Disk Video Recorder Ht-6705

This mobile solution comes complete with everything required for simple installation.
These mobile solutions are currently being used in the following applications:
Law Enforcement - Patrol Cars
Military - Tanks
Emergency Ambulances, Fire Trucks
Public Buses, Trains, Railways, Subways
Commercial Boats, Heavy Equipment, Limousines, Taxis, Vans
Transportation - Freight Liners
Aviation Helicopters, Commercial and Private Aircraft.

Main functions:
1. Adopt H. 264 format, high compression ratio, clear image
2. Use SD card to read data, convenient and quick.
3. Main format h. 264, support (VLC) language player
4. Protect function; Preserved date before cutting power off
5. Support GPS, when replay video can simultaneously see vehicle route, speed, latitude, longitude and alarming when over-speed
6. Voltage 8-36V, suitable for various cab models,
7. Power output: 12V 3A, support peripheral power supply.
8. Support 4 channel alarming input and 1 channel output.

Spec.
Operating voltage: DC: +8V--+36V
Current output: : 12V 3A
Video input: 1-4 channel composite video
Audio input: 1 channel
Data storage: Support 32G 16G / SD card
Formats: H. 264 compression format
Video frame rate: PAL: 25(fp/s) NTSC: 30(fp/s)
Resolution: HD1/CIF(optional) maximum to 4channel HD1
Playback software: Maximum support 4 channel simultaneously
Video mode: Starting up, timing, alarm triggers, manual video
Working temperature: -30-+85
Size: 145*48*138 mm
Weight: 0.5kg.
