2013 The Newest Ucige Electronic Cigarette Converter

2013 the newest ucigeElectronic Cigarette converter

Operation and consistent watts output

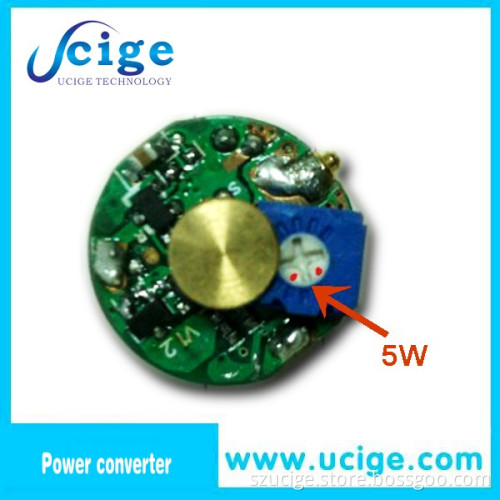

1. Adjust the watts output via the "+" VR, the mininum watts is 5W, the maxnum watts is 15W, when adjust VR into the left side, show the min watts 5W, when adjust the right side, show the max watts 15W, middle position is 7.5W.

2. When output resistance is lower 1.0rhm, have the function of the low resistance protection, output short-voltage protection.

3. According to your hobbies with a screw driver, adjust the watts via "+" VR from 5W~15W, volts 0.5+. When the control panel was adjusted the watts you wanted. Put it into the battery to smoke.

Basic functions:
3.1 Once power on reset, no connection with the atomizer, enter into the standby mode.
3.2
3.3 when smoking with the voltages < 3.2V, low voltage protection is working, and smoking without output.

2.5 RMS output

Power supply:

1.1 Nominal capacity: 3.7V IMR battery

1.2 Has the protection function of negative reverse connection, short circuit, low resistance and short-voltage protection. Can used with any model telescope.
It is Boosted Power Regulation in the form of a drop in module designed to be used in various tube devices with IMR batteries, enhance the machined products safety

1.3 can not charge directlly, must take it out, then charge it under outside circumstance.

After-service
1.12 months warranty policy
2. We will replace the broken parts with new in the next order
3. Choose the fastest and safest shipping company
4. Track the order until you get the goods

Basic functions:
3.1 Once power on reset, no connection with the atomizer, enter into the standby mode.
3.2
3.3 when smoking with the voltages < 3.2V, low voltage protection is working, and smoking without output.

Technology specifications:

2.1 can used with the 1.5rhm~3.0rhm atomized, with the 5W~15W variable watts, sequence with +/-1W.

2.2 the Kick's Power Regulation microprocessor will automatically and constantly, after fitting together with the atomizer, power on, watts will be output...It can fit all of sigelei telescope models.

2.3 Quiescent current <1000UA

2.4 When smoking, output current <3A, and atomizer resistance is 1.5rhm, allowed the max current is 4A
