7'' Rugged Tablet Pc's (PRP-T70)
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description


Intel® Cedar Trail™ Platform, N2600 1.6GHz with NM10 chipset
Seamless communication functions, 3.5G or LTE, GPS, Tracker (optional)
Slim, rugged, sealed and lightweight design
Sunlight Readable function (optional)
IP65, MIL-STD-810G and MIL-STD-461F

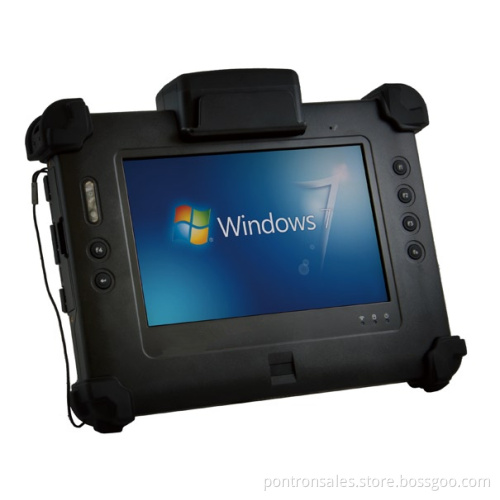

7" IP65 Rugged Tablet PC
W/Intel® Cedar TrailTM Platform
Hot swappable dual battery with up to 8 hours battery life
Dual camera and RFID module support (optional by snap-on module)
Wide coverage accessories to meet different deployment needs
The compact vehicle dock and vehicle
Introduction:
PRP-T70 is the best functionality and ergonomics for user application. Based on MIL-STD-810G military standard reliability (high temperature, low temperature, shock, vibration, drop), the Rugged Tablet PC pass from -20 to 50º C, highly transit shock and vibration, 6ft drop to plywood on concrete surface, and also IP65 fully sealed to against water & dust damage. With sunlight readable touch screen coating technology, fanless thermal conduction design, and
Expansion flexibility for barcode scanner, MSR, GPS, Tracker, RFID (optional by snap-on module) or wireless combo communication functions. Our Rugged Tablet PC can meet the most of harsh outdoor environment application and will be the best tool of your job assistance.
CPU | Onboard Intel ATOM N2600 Dual Core 1.6GHz | |
Chipset | Intel NM10 | |
Display | 7″WSXGA LED Backlight ,400nits/500nits(Optional) | |
Resolution | 1280(W) × 800(H) | |
Touch Screen | 5-wire Resistive Touch | |
Memory | 2GB DDRIII 800 SO-DIMM | |
Storage | 32GB SATA half-slim size SSD | |
Speaker | High Quality Speaker | |
Network | 1 x 100/1000Mbps Ethernet ,WiFi IEEE 802.11a/b/g/n and Bluetooth | |
Webcam | 2 Mega-pixel camera audio input(Front bezel) 5 Mega-pixel camera with LED Flashlinght(Rear bezel) |
|
Light Sensor | 1 | |
GPS | Embedded GPS/Glonass(Optional) | |
WWAN | 3.5G or LTE(Optional) | |
TPM | TPM 1.2(Optional) | |
RFID | ISO/IEC 14443A,14443B , Mifare 1K/4K,Ultralight, NFC-IP1 Protocol (Optional by snap-on module) |
|
I/O | 2 x USB2.0 | |
1 x For microphone and headphone | ||
1 x RJ45 Ethernet | ||
1 x RS232 | ||
1 x Micro SD Slot | ||
1 x DC jack | ||
In Front Control | 1 x Power button,1 x Enter key,5 x program Function button | |
LED Indicator | Power on/off,Storage,WIFI on/off | |
Protection Class | IP65 for whole device | |
Certifications | CE,FCC | |
Operating System | WES7-WS7P,Win7 Pro | |
Drop | 5-ft drop resistance(MIL-STD-810G ) | |
Mechanical Shock | Operating:40g,11ms,Terminal sawtooth (MIL-STD-810G Method 516.6 Procedure 1 Functional Shock) Non-operating:75g,8~13ms,Terminal sawtooth (MIL-STD-810G Method 516.6 Procedure V,Crash Hazard Shock) |
|
Power Supply | Power Adapter: AC100V~240V,50~60Hz input;19VDC@3.42A,65W | |
Battery | Internal Smart Lithium Polymer battery,3000mAH,7.4V | |
Fanless | Fanless design | |
Dimension | 225(W)x 168(H)x 26.5(D)mm | |
Installation | Tablet/hand | |
Net Weight | 0.9Kg | |
Gross Weight | Abt 2.1Kg | |
Operating temp | -20~+50ºC(MIL-STD-810G Method 501.5 and 502.5) | |
Storage temp | -30~+70ºC(MIL-STD-810G Method 501.5 and 502.5) | |
Humidity | 5~95% without condensation(MIL-STD-810G Method 507.5) | |
Ordering information | PRP-T70:Intel N2600 Dual core 1.6GHz Rugged Tablet w/7"touch panel/2GB RAM/32GB SSD/WLAN/BT/internal battery |
