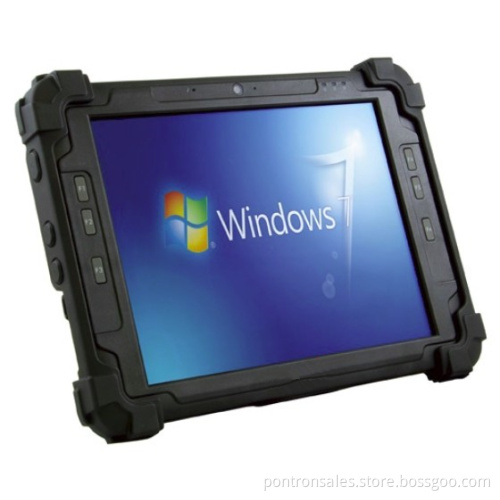

10.4'' Rugged Tablet Pc's (PRP-T104)
  • 10.4'' Rugged Tablet Pc's (PRP-T104)
  • 10.4'' Rugged Tablet Pc's (PRP-T104)
  • 10.4'' Rugged Tablet Pc's (PRP-T104)
  • 10.4'' Rugged Tablet Pc's (PRP-T104)
  • 10.4'' Rugged Tablet Pc's (PRP-T104)
10.4'' Rugged Tablet Pc's (PRP-T104)
10.4'' Rugged Tablet Pc's (PRP-T104)
10.4'' Rugged Tablet Pc's (PRP-T104)
10.4'' Rugged Tablet Pc's (PRP-T104)
10.4'' Rugged Tablet Pc's (PRP-T104)

10.4'' Rugged Tablet Pc's (PRP-T104)

Payment Type:
L/C, T/T, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C, T/T, Western Union
Product Description
Product Description
10.4'' Rugged Tablet Pc's (PRP-T104)10.4'' Rugged Tablet Pc's (PRP-T104)Main feature:

Intel® Cedar Trail™ Platform, N2600 1.6GHz with NM10 chipset
Seamless communication functions, 3.5G or LTE, GPS, Tracker (optional)
Slim, rugged, sealed and lightweight design
Sunlight Readable function (optional)
IP65, MIL-STD-810G and MIL-STD-461F
10.4" IP65 Rugged Tablet PC
W/Intel® Cedar TrailTM Platform
Hot swappable dual battery with up to 8 hours battery life
Dual camera and RFID module support (optional by snap-on module)
Wide coverage accessories to meet different deployment needs
The compact vehicle dock and vehicle

Introduction:
PRP-T104 is the best funchao tionality and ergonomics for user application. Based on MIL-STD-810G military standard reliability (high temperature, low temperature, shock, vibration, drop), the Rugged Tablet PC pass from -20 to 50º C, highly transit shock and vibration, 6ft drop to plywood on concrete surface, and also IP65 fully sealed to against water & dust damage. With sunlight readable touch screen coating technology, fanless thermal conduction design, and
Expansion flexibility for barcode scanner, MSR, GPS, Tracker, RFID (optional by snap-on module) or wireless combo communication functions. Our Rugged Tablet PC can meet the most of harsh outdoor environment application and will be the best tool of your job assistance.
CPU Onboard Intel ATOM N2600 Dual Core 1.6GHz
Chipset Intel NM10
Display 10.4″high-brightness LED ,350nits/500nits(Optional)
Resolution 1024(W) × 768(H)
Touch Screen 5-wire Resistive Touch
Memory DDRIII 2GB
Storage SATA SSD 32Gb
Speaker High Quality Speaker
Network 1 x 100/1000Mbps Ethernet ,WiFi IEEE 802.11a/b/g/n and Bluetooth
Webcam 2 Mega-pixel camera audio input(Front bezel)
5 Mega-pixel camera with LED Flashlinght(Rear bezel)
Light Sensor 1
GPS Snap-on module(Optional)
WWAN 3.5G or LTE(Optional)
TPM TPM 1.2(Optional)
RFID ISO/IEC 14443A,14443B , Mifare 1K/4K,Ultralight, NFC-IP1 Protocol
(Optional by snap-on module)
I/O 2 x USB2.0
1 x For microphone and headphone
1 x mini USB for Ethernet
1 x DC jack
In Front Control 1 x Power button,1 x Lock button,1 x RF button,5 x program Function button
Protection Class IP65 for whole device
Certifications CE,FCC,UL
Operating System WES7-WS7P,Win7 pro
Drop 6-ft drop(MIL-STD-810G Method 516.6 Procedure IV)
Mechanical Shock Operating:40g,11ms,Terminal sawtooth
(MIL-STD-810G Method 516.6 Procedure 1 Functional Shock)
Non-operating:75g,8~13ms,Terminal sawtooth
(MIL-STD-810G Method 516.6 Procedure V,Crash Hazard Shock)
Power Supply Power Adapter: AC100V~240V,50~60Hz input;19VDC@3.42A,65W
Battery Internal Smart Lithium Polymer battery,3800mAH,7.4V
Fanless Fanless design
Dimension 275.4(W)x 203.6(H)x 26.5(D)mm
Installation Tablet/hand
Net Weight 1.2Kg
Gross Weight Abt 3.1Kg
Operating temp -20~+50ºC(MIL-STD-810G Method 501.5 and 502.5)
Storage temp -30~+70ºC(MIL-STD-810G Method 501.5 and 502.5)
Humidity 5~95% without condensation(MIL-STD-810G Method 507.5)
Ordering information PRP-T104:Intel N2600 Dual core 1.6GHz Rugged Tablet w/10.4"touch panel/2G RAM/32G SSD/WLAN/BT/internal battery
