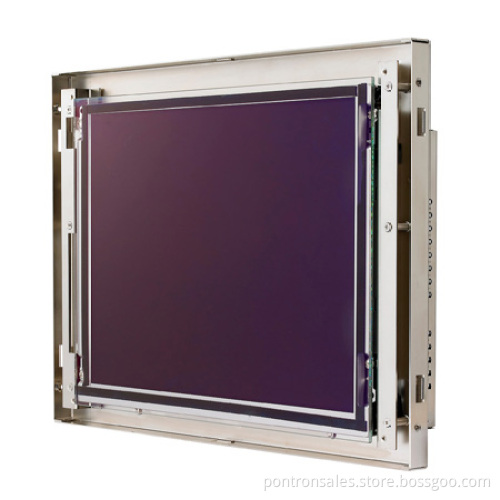

10.4" Open Frame Flat Panel Monitor (OPM-104)

10.4" Open Frame Flat Panel Monitor (OPM-104)

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union

Product Description

Features

10.4" SVGA TFT LCD Panel support 800X600 pixels
Open frame structure with strengthen glass
Rugged construction design
Input signal: VGA + Audio
220 CD/m2 brightness
OSD control keys to optimize the display
Build in 2X 2 Watts stereo speaker
AC 100-240V wide range external AC adapter
Panel mounting with clip
Meet standard VESA hole ( 75X75 and 100X100 mm ), support desk top stand / wall mount / swing arm mounting

Optional

Video input (Composite )
DC power input ( 8 -30V DC input )
Touch Screen

LCD Panel	Display Type : 10.4" SVGA TFT LCD Resolution : 800 × 600 Max.color : 262,144 colors Luminance : 220 cd/m2 View Angel : 110°(H) , 80°(V) Pixel Pitch : 0.264 x 0.264 mm Contrast Ratio : 400 : 1 Response Time : 45 ms Power Consumption : 4 W LCD MTBF : 20,000hrs
Signal input	VGA ( 15 pin D-sub connector ) + Audio input ( audio jack )
Protect glass	3 mmstrengthen glass
OSD	Brightness, Contrast, H/V Position, Color, Phase, Clock, auto tune and recall
Touch Screen ( optional )	Internal USB or RS-232 interface controller Type: Analog resistive type : 25VDC ≥ 20MΩ Resolution: continuous Light transmission: 80% or more Power consumption:<5V @1mA Surface hardness : 3H Operating force : ≤100g Life expectancy : 35 Million Operation system : Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux
Signal connectivity ( optional )	AV input (RCA)
DC power input ( optional )	Wide range DC 8V-30V input
Power Supply	Input: 100~240VAC,50/60Hz Output: DC12V@ 4A /48W ,external ac adapter
Construction	Heavy duty steel
Environment	Operating temperature: 32 °F~113 °F (0 °C to 45 °C) Storage temperature: -4 °F~140 °F (-20 °C to 60 °C) Storage humidity: 10% to 95%@ 40°C , on-condensing Vibration: 10 ~ 150Hz, 0.15mm 10 cycles 1G Shock: 30G peak acceleration (11 msec. duration)
Safety	CE/FCC/Rohs
Dimension W x H x D ( mm )	Dimensions:294.6 x 218.1 x 50mm Packing Dimension:420 x160 x 380mm
Weight ( kgs )	NET weight: 2.9KG Gross weight: 3.4KG
