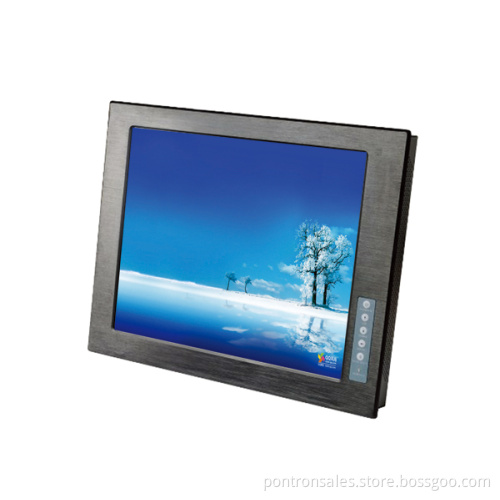

19" Industrial Flat Panel Monitor (IPM-190)

19" Industrial Flat Panel Monitor (IPM-190)

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union

Product Description

Features

19" SXGA TFT LCD Panel support 1280 X 1024 pixels
6mm Aluminum front bezel with strengthen glass
Rugged construction design
Input signal: VGA (15 Pin D-SUB)
300 CD/m2 brightness
OSD control keys to optimize the display
AC 100-240V wide range external AC adapter
NEMA4 / IP 65 compliant front panel (Optional)

Introduction
IPM-190 is industrial grade LCD monitor with 19'' FTF LCD screen, with high brightness of 300CD/m2, resolution of 1280X1024. Al-alloy front panel with rugged design, metal case.
There are two way of the installation Panel mounting with clip and Meet standard VESA hole ( 75X75 and 100X100 mm ), support desk top stand / wall mount / swing arm mounting.
It is a cost-effective industrial-grade display, and can be widely used in telecommunications, electricity, multimedia, defense, industrial automation equipment, manufacturing and other fields

LCD Panel	Display Type : 19" SXGA TFT LCD Resolution : 1280 x 1024 Max.color : 16.7M Luminance : 300 cd/m2 View Angel : 178°(H) , 178°(V) Pixel Pitch : 0.294 x 0.294 mm Contrast Ratio : 1000 : 1 Response Time : 5 ms Power Consumption : 23.25 W LCD MTBF : 50,000hrs
Signal input	VGA ( 15 pin D-sub connector )
Protect glass	3 mmstrengthen glass
OSD	Brightness, Contrast, H/V Position, Color, Phase, Clock, auto tune and recall
Touch Screen ( optional )	Internal USB or RS-232 interface controller Type: Analog resistive type : 25VDC ≥ 20MΩ Resolution: continuous Light transmission: 80% or more Power consumption:<5V @1mA Surface hardness : 3H Operating force : ≤100g Life expectancy : 35 Million Operation system : Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux
Power Supply	Input: 100~240VAC,50/60Hz Output: DC12V@ 4A /48W ,external ac adapter
Construction	Heavy duty steel and aluminum front panel
Environment	Operating temperature: 32 °F~113 °F (0 °C to 45 °C) Storage temperature: -4 °F~140 °F (-20 °C to 60 °C) Storage humidity: 10% to 95%@ 40°C , on-condensing Vibration: 10 ~ 150Hz, 0.15mm 10 cycles 1G Shock: 30G peak acceleration (11 msec. duration)
Safety	CE/FCC/Rohs
Dimension W x H x D ( mm )	Dimensions: 486.4 x 385.4 x 55.2mm Packing Dimension: 600x180x 540mm
Weight ( kgs )	NET weight: 7.2KG Gross weight: 7.9 KG
