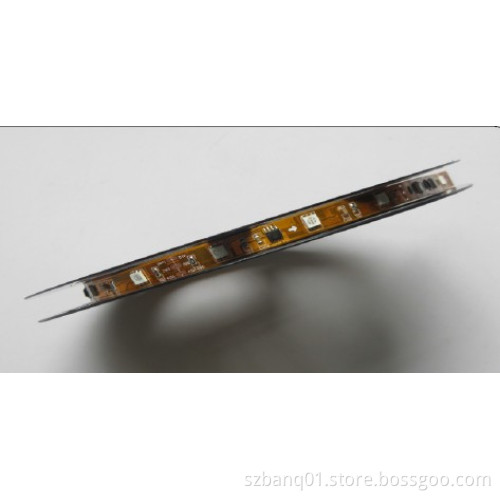

30LED/M SMD5050 RGB Chase Non-Waterproof 12V Flexible LED Strip Light.

BQ00-5050RGB30HC12-W10-IP20

Product Description:

30led/m, SMD5050, RGB chase, non-waterproof 12v flexible led strip light.

Product Feature:

1. Single cable transmission; Maximum cascade 2048 IC, of maximum transmission distance of IC and IC up to 10meters

2. Light blue light to electricity self-inspection function, which can determine the IC is whether working correctly

3. Every 3leds for a unit and cuttable, many ways to install, very convenient;

4. The voltage is DC12V, so it's safe to use the led strips;

5. Products adopt PWM control, built-in 17ma, constant current mode, achieve 256 gray-scale adjustment, sweep frequency 1.5 Mhz/s

6. Can be Widely used in bars, KTV, hotels and other places of the hall and outdoor.


Parameter:
Input voltage: DC12V
Power: 7.2W/m
Size: 5000MM*10MM/ roll
Wavelength: Red: 626-630nm, Green: 520-525nm, Blue: 465-470nm
LED quantity: 30LED/m
LED quantity/unit: 3leds
Color: RGB
Beam Angle: 120degree
Working temperature: -40--+50
Storage temperature: -50--+60


Installation:
1. Single controller cascade method, as shown in the above, in the behind of controller, It connects to 40 w constant voltage power supply every 5 meters strip, single controller cascade can be realized at such cascade input.

2. Multiple synchronous connection controller: A controller on the TXA TXB respectively for a controller RXA RXB, a cascading down can be up to 64units, the distance between each controller can be up to 200 meters, the master synchronization menu is set to "F - sr, sub control synchronization menu is set to" F - Ct ", as shown in the above.
