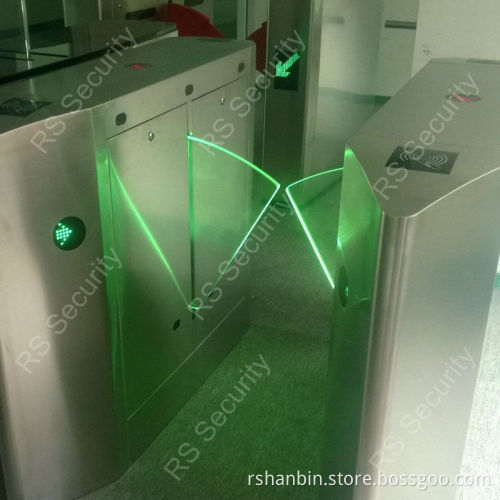

Public Area Anti-Rushing Flap Gate Intelligent Wing Gate

           Access Control Pedestrian Flap Gate Turnstiles

RS Security Access Control Pedestrian Flap Gate Turnstiles  is designed for applications where robust and reliable access control is a requirement but space is limited.The turnstile are available with straight or rounded cabinet ends and a variety finish. A durable cabinet construction ensures long life and minimum maintenance.
Key Features:
1. Reliable and durable, low noise and stable operation, adapt to varied situation
2. Standard electrical interface, various card reader acceptal to our wing gate & can be (remote) controlled by computer, single/Double Directional Optional which can be controlled by both ways or single way( can be mechanically set by the buttons on built-in control panel);
3. Gate open automatically when power off to the request of fire protection, and automatically closes when power on;
4. Fap gate turnstiles installed Infrared sensor interfaces, could be expanded to Infrared testing function.
5. Breakdown Self-checking and alarm indication, easy for maintenance and using;
6.  flap gate turnstiles will automatically locked until opening signal is received, motor will stop working in case of the wing encounter of obstruct;
7. Anti illegal entering alarm: Light and sound alarm is generated when the illegal invasion and the tail followed;
8. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable;
9. Passage in both directions electronically controlled. The pedestrian retractable barrier is available in Normally Open (N/O) or normally Closed (N/C) mode. In N/O the speed gate provides an always open walkway in rest position and will only close at unauthorized entry or tailgating attempts;
10. Driving Mechanism: The wings are moved by mechanical arms. The arms are rotated by a torque shaft connected to the drive unit. The drive unit is a DC motor working in conjunction with a bi-directional encoder. A microprocessor control system guarantees the precise movement and positioning of the wings;
11. Method of Operation: ON receiving a signal from the access control system, or push button, the wings open. If an unauthorized person tries to tailgate or attempts to enter from the opposite direction, the system detects the unauthorized passage and activates the in-built alarm system;
12. Status Lights: 90mm dia. LED display status lights flush mounted within the speed gates lid top face. Upon authorization a Green arrow will illuminate in the direction of passage authorization whilst in the opposite direction a Red Cross symbol will illuminate to indicate the unit is not available for use or is already
Flap gate value Selection:
Standard  Semi-automatic flap gate movement
Housing(304#stainless steel at 1.5mm)

Standard Flap Barrier Wing Turnstile Control Board

Power Supply DC24V/5A

Backup storage battery(Wing open when power off)

Turnstile Traffic Indicator(standard assorted)

Turnstile Passage Status Lights

Correlation Infrared(standard assorted 3 pairs)
