Supermarket Access Control System-Swing Gate Turnstile

Supermarket Access Control system-Swing Gate Turnstile

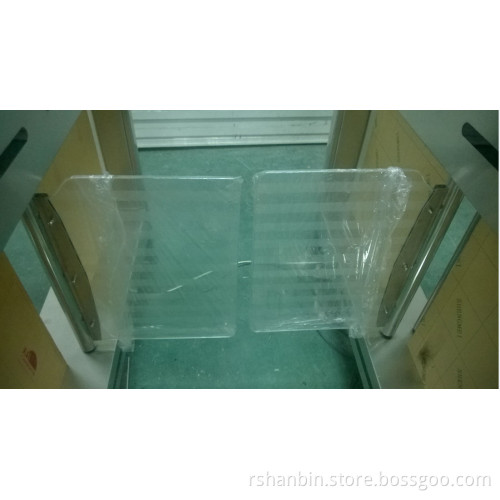

Product Name: Swing gate barrier
Model: RS 316
Access control, security product, parking system, time attendance, fingerprint access control, turnstile, fingerprint time attendance, turnstiles, roadway safe, swing gate barrier, swing gate turnstile

Specifications

1. Steel cut by laser;
2. The least welding portion polished properly;
3. Original finish kept;
4. Instrusion and safety;



2. Technical Data
Technical Data DB315
Passage width ≤ 550mm
Throughput rate 40p/m
Power supply 220~240v
Operational voltage 24v
Max power consumption 30w
Frequency 50~60 hz
Prectection level ≥ 44ip
Working temperature - 25~+70 ° C
Dimension excluding bars ¢ 141x1020mm
Net weight including bars 40kg
Elctro-magnetic drive DC


1). Check the wiring

When connected power debugging, please check the wiring diagram according to each parts of
The line is connected.

Note: Protective earth wire of equipment must reliable grounding, otherwise don't
Allow debugging.

2). Function test

(1) Turnstile actually pick two way signal (come in and out ).

(2) if the installation has LED indicator light on the surface, if the control PCB board receive
The legitimate signal, turnstile will have green arrows in the direction.
