Security Product -Access Control Swing Gate Barrier &Turnstile

Security product -Access control swing gate barrier &turnstile

Access control, turnstile, security product, swing gate barrier, swing gate turnstile, parking system, time attendance

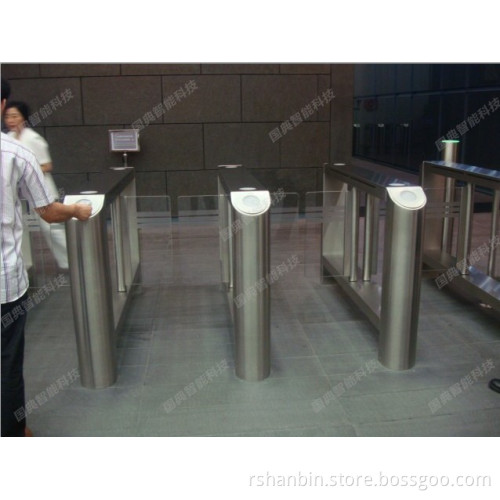

Product Name: Swing gate
Model: RS616
Intelligent swing gate turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies. Adopt reliable security protection equipment, alarm equipments, direction indicator and extended friendly LED panel display.
It has Standard input and output interfaces; It is best choice for system integrators. Compatible with Mifare card, 125kHz card, barcode and fingerprint reader and so on.
L
Specification
Framework: 304 Grade Stainless Steel
L Specification: 1600*280*1000(mm)
L Weight: 90kg
L Arm length: 300-600(mm)
L Swing angle: 0-180
L Power voltage: AC220 (10%more or less) V, 50(10%more or less) Hz
L Drive voltage: 24V
L Interface: Standard port-RS485
L LED indicating light: One
L Card-reading window: Two
L Transit speed: 30— 40persons per minute (normal open), 25-30 persons/per minute ( normal close)Run into working state when power on: 3 s
L Auto reset time when there is breakdown: 10sNormal life: 3 million times
L Communication interface: RS 485, distance <= 1200mInput interface: Relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms, drive current>10mA

Function:
² Working method can be set by the buttons on the main panel
² Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
² Anti-illegal in, anti-intrusion, auto close for reverse direction.
² Anti-collision, gate closes when no valid signal is given.
² Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
² Gates can be synchronous
² Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
² Reset function by photocells, 4 or 6 pairs.
² Anti-pinch function by photocells, 4 pairs
² Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
² One way or two way control
² Unit can be controlled and administered by remote control
² LED lamp indicator
