520tvl HD Ultrathin Mini Camera for Home, Elevator, Stores (0.008lux night vision, weight: 2g)
  • 520tvl HD Ultrathin Mini Camera for Home, Elevator, Stores (0.008lux night vision, weight: 2g)
520tvl HD Ultrathin Mini Camera for Home, Elevator, Stores (0.008lux night vision, weight: 2g)

520tvl HD Ultrathin Mini Camera for Home, Elevator, Stores (0.008lux night vision, weight: 2g)

Payment Type:
T/T, Western Union, Paypal, Money Gram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: T/T, Western Union, Paypal, Money Gram
Product Description
Product Description

Product Description

Features & functions:

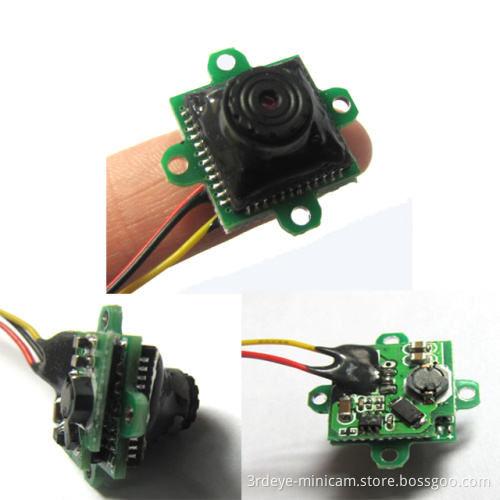

It's an ultra small high definition CCTV camera with excellent night vision.
Size is 16x16x10.5mm only, Weight is 2g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Usage:

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.

Accessories:

AV cablex1 (RCA or BNC), AC adapterx1, Manualx1
PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC  : 656  ( H  ) × 492  ( V ) PAL  : 786  ( H )× 576  ( V )
SENSOR DIMENSION 4.75mm  ( H  ) × 3.55mm  ( V )
HORIZONTAL RESOLUTION Approximately 520TV Lines
SENSITIVITY 0.008Lux/F1.2
LENS  &   VIEW  ANGLE 0.5mm F2.0 / 55°
S/N RATIO 48dB
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
AUDIO OUT 1.0V p-p/1Kohm
SIZE  (L x W x H) 16x16x10.5mm
WEIGHT 2g
WORK CURRENT 75mA
POWER REQUIREMENT DC 3.6V-5V
OPERATING TEMPERATURE - 10° C ~ +50° C  , less than  90% RH
Connection PIN1 à Red DC5V PIN2 à Black GND PIN3 à Yellow VIDEO OUT PIN4 à White AUDIO OUT
