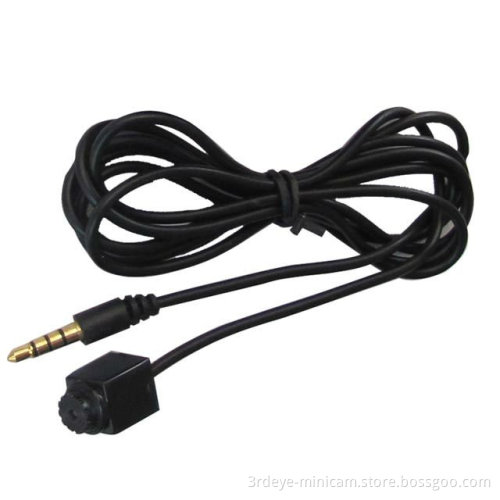

3.5mm AV Jack Mini Camera-520tvl, 0.008 Low Lux, Mini Size: 11.5x11.5x17mm) (MC900DA-E)

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

Features:
1)Micro size: 11.5x11.5x15mm, weight is 2g, easy to install and conceal
2)0.008low lux mini camera, can work under low light
3)520tvl HD CCTV camera
4)3.5mm or 2.5mm AV in jack mini camera

Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC : 656 ( H ) × 492 ( V )	PAL : 786 ( H )× 576 ( V )
SENSOR DIMENSION	4.75mm ( H ) × 3.55mm ( V )
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SENSITIVITY	0.008Lux/F2.0
LENS & VIEW ANGLE	0.5mm F2.0 / 55°
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm
SIZE (L x W x H)	11.5x11.5x15mm
WEIGHT	2g
WORK CURRENT	75mA
POWER REQUIREMENT	DC 3.6V-5V
OPERATING TEMPERATURE	- 10° C ~ +50° C , less than 90% RH
Connection	3.5mm or 2.5mm AV in jack
