12V 120 Degree 520tvl Micro CCTV Camera for Home, Warehouse, Stores
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Payment Type: | T/T, Paypal, Money Gram, Western Union |
Product Description
Product Description
Product Description
Features

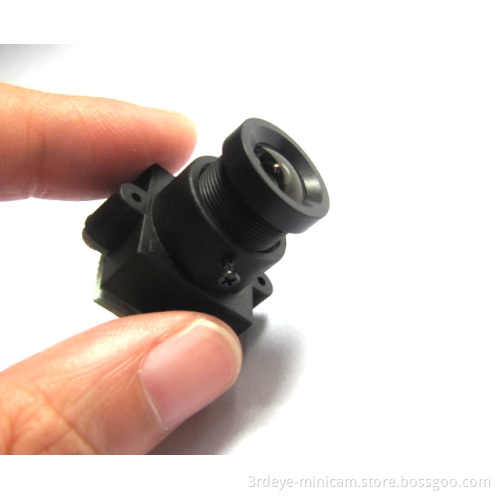

1)mini size CCTV camera: 24x18x15mm, weight: 5g
2)0.008 low lux, can work under dim light
3)520tvl HD clear video
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.
Accessories:
AV cablex1 (RCA or BNC), AC adapterx1, Manualx1
1)mini size CCTV camera: 24x18x15mm, weight: 5g
2)0.008 low lux, can work under dim light
3)520tvl HD clear video
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.
Accessories:
AV cablex1 (RCA or BNC), AC adapterx1, Manualx1
PICK UP ELEMENT | Single chip 1/3 CMOS | |
SYSTEM | NTSC | PAL |
NUMBER OF PIXEL | NTSC : 656 ( H ) × 492 ( V ) | PAL : 786 ( H )× 576 ( V ) |
SENSOR DIMENSION | 4.75mm ( H ) × 3.55mm ( V ) | |
HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
SENSITIVITY | 0.008Lux/F1.2 | |
LENS & VIEW ANGLE | 3.6mm F1.2 / 120° | |
S/N RATIO | 48dB | |
AUTO GAIN CONTROL | OUT | |
WHITE BALANCE CONTROL | OUT | |
BACK LIGHT COMPENSATION | OUT | |
VIDEO OUT | 1.0V p-p/75ohm | |
SIZE (L x W x H) | 24x18x15mm | |
WEIGHT | 5g | |
WORK CURRENT | 75mA | |
POWER REQUIREMENT | DC 9-12v 72mA | |
OPERATING TEMPERATURE | - 10° C ~ +50° C , less than 90% RH | |
Connection | PIN1 à Red DC5V PIN2 à Black GND PIN3 à Yellow VIDEO OUT |
