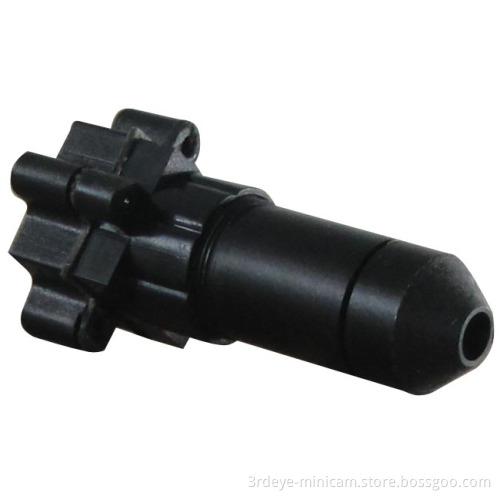

520TVL Mini CCTV Camera--MC5945P (15deg accurate VOA; 0.008LUX; Small size with 2 install holes)
Model: MC5945P
This mini camera comes with high sensitive CMOS sensor, which has excellent video function and very low illumination(0.008lux). It is of high stability and ultra long working life. Small size(14X14X43mm) and light weight(8g), with two screw holes(screw provided), it is easy to install into the ceiling, wall, cabinets, equipments, etc. For safe surveillance.

Main Features
1. Small Size: Easy to install into narrow room: Ceiling, wall, cabinets equipments, etc.;
2. Light Weight with 2 screw holes: Easy to install without causing unnecessary damage on object surface;
3. High resolution, high sensitivity, high SNR;
4.15 degree accurate view of angle, which can clearly see small text 5 meteres away;
5. Day & night dual mode auto switch;
6. Low Current and power consumption;
7. CMOS sensor generation IV +DSP chip offer true color & HD video.

How to use
1)Work with TV/monitor: Camera powered by provided AC adatper. Connect it to TV/monitor with RCA/BNC cable.
Then watch live video & audio, or record, play on the TV/monitor;
2) Work with DVR(AV-IN jacked, e. G. TE968H): Camera powered by DVR. Just directly connect the camera with DVR,
It starts to work. Then watch live video & audio, or record, play, take pictures on DVR.

PICK UP ELEMENT	Single chip 1/4CMOS
NUMBER OF PIXEL	NTSC:720(H)×480(V)			PAL:720(H)×576(V)
SENSOR DIMENSION	3.584mm(H)×2.688mm(V)
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	MC5910:0.5mmF1.2 / 90 °	MC59B36:3.6mmF2.0 / 90 °			MC59P36:3.6mmF3.0 / 90 °
	MC5912P:12mmF3.0 / 30 °	MC5945P:45mmF3.0 / 15°			MC5970P:70mm F3.0 / 8°
S/N RATIO	48dB
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm
SIZE (L x W x H)	MC5910:13.8mmx 13.8mm x 21mm		MC59B36:14mmx 14mm x 29mm
	MC59P36:14mmx 14mm x 20mm		MC5912P:14mmx 14mm x 35mm
	MC5945P:14mmx 14mm x 43mm		MC5970P:14mmx 14mm x 79mm
WEIGHT	MC5910: 4g	MC59B36: 7g			MC59P36: 6g
	MC5912P: 8g	MC5945P: 8g			MC5970P: 13g
WORK CURRENT	5V:65mA 12V:32mA
POWER REQUIREMENT	DC 3.3V-24V
OPERATING TEMPERATURE	- 10° C ~ +50°C ,less than 90% RH
Connection	PIN1àRedDC5V PIN2àBlackGND PIN3àYellowVIDEO OUT PIN4àWhiteAUDIO OUT
