520tvl 0.008lux Smallest Mini CCTV Video Security CCTV Camera for Car Home Use

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

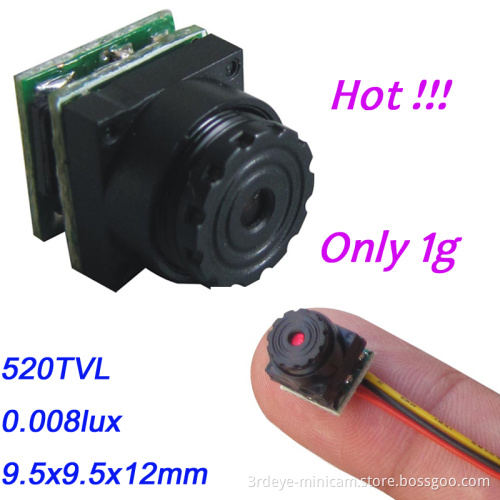

520TVL 0.008lux Smallest Mini CCTV Video Security CCTV Camera for Car Home use

Features & functions

It's an ultra small high definition CCTV camera with excellent night vision.
Size is 9.5X9.5X12mm only, Weight is 1g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Ready AV/BNC cable and power supply cable. Just plug & play!

Contents
Mini camera X1; RCA/BNC cableX1; AC adapter X1

Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC : 656 ( H ) × 492 ( V )	PAL : 786 ( H ) × 576 ( V )
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm ( H ) × 3.55mm ( V )
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2 : 1 Interlace
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	0.5mm F2.0 /55 °
S/N RATIO	52dB
ELECTRONIC SHUTTER	OUT ( 1/60 S TO 1/100000 S)	OUT ( 1/50 S TO 1/100000 ) S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
SIZE (L x W x H)	9.5mm x 9.5mm x 12mm
WEIGHT	1g
WORK CURRENT	70mA
POWER REQUIREMENT	DC 3.3V-6V
OPERATING TEMPERATURE	- 10° C ~ +50° C , less than 90% RH
Connection	PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT
