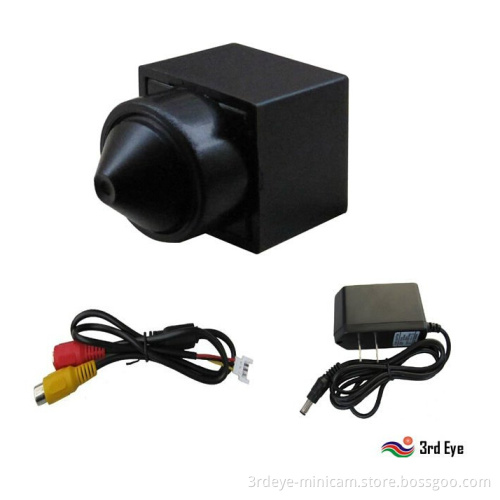

0.008lux 520tvl Small Night Vision Camera Finger Camera Mc493

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

New 480TVL CMOS CCTV color mini hidden Security camera 3.6-24V Wide Voltage

Model: MC91P36

Main Features

1.90 degree wide view angle lens, 3.6-24V wide voltage;
2. Small Size: Easy to install into narrow room and slim tube, etc.;
3. High resolution, high sensitivity, high SNR;
4. Day & night dual mode auto switch;
5. Low Illumination, Low Current and power consumption;
6. CMOS sensor generation IV+DSP chip offer true color & HD video.

Usage

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.

Photoshows:

PICK UP ELEMENT	Single chip 1/4CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC: 720 ( H )× 480 ( V)	PAL: 720 ( H )× 576 ( V)
SENSOR DIMENSION	3.584mm( H )× 2.688mm ( V)
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.1Lux/F2.8
LENS & VIEW ANGLE	F2.8/ 90°
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
WEIGHT	6g
SIZE( LXWXH)	15.5X15.5X20mm
WORK CURRENT	DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT	DC: 3.6V-24V
OPERATING TEMPERATURE	- 10° C ~ +50° C, less than 90% RH
Connection	PIN1=> Red DC5V /12V PIN2=> Black GND PIN3=> Yellow VIDEO OUT
