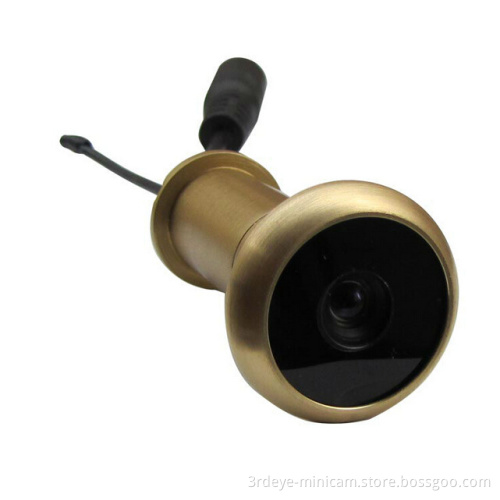

Pure Brass Door Eye Camera for Thick Door (58~85mm)

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

Features:

1)13.8mm super small diameter, which is suitable to all doors with peephole. No need to drill hole, just install directly; 2)0.008low lux mini camera, can work under low light
2)90 degree broad view angle
3)0.008lux extremely low illumination, which makes it can clearly see the visitor even under dim light
4)Brass material, noble and durable;
5)Directly connect BNC cable to TV/monitor/DVR, it's very quick & easy.

Installation:

1. Use one coin or other tool to uninstall the original optical viewer;
2. Unscrew copper sleeve off and pass lens cable through peephole from outside to inside of door. Set lens cable into sleeve; Screw sleeve into peephole inside of door. (Pay attention to horizontal direction of lens);
3. Connect lens cable with BNC cable and fix it well. Then connect BNC cable with TV/monitor/DVR to start monitoring.

AV cablex1 (RCA or BNC), AC adapterx1, Manualx1

PICK UP ELEMENT	Single chip 1/4 CMOS
SYSTEM	NTSC
NUMBER OF PIXEL	720(H)× 480(V)
SENSOR DIMENSION	4.75mm ( H ) × 3.55mm ( V )
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	F1.2/90deg
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm

Diameter	13.8mm x (58-85mm)
WEIGHT	35g
WORK CURRENT	DC12V: 35mA
POWER REQUIREMENT	DC(3.6-24V )
OPERATING TEMPERATURE	- 10° C ~ +50° C , less than 90% RH
Connection	PIN1 à Red DC5V PIN2 à Black GND PIN3 à Yellow VIDEO OUT
