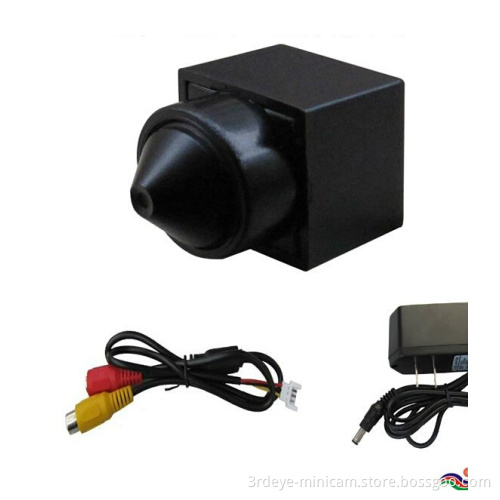

90deg View 480tvl Mini CCTV Camera Fpv Camera

Get Latest Price

Payment Type:: T/T, Western Union, Paypal, Money Gram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Western Union, Paypal, Money Gram

Product Description

Main features

90 degree wide view angle lens, . 6-24V wide voltage;
Small Size: Easy to install into narrow room and slim tube, etc.;
High resolution, high sensitivity, high SNR;
Day & night dual mode auto switch;
Low Illumination, Low Current and power consumption;
CMOS sensor generation IV+DSP chip offer true color & HD video.

Usage

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) to view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer; 3) to view on your computer or laptop you will need a DVR card or USB;
4) a standalone system that records is a standalone DVR;

Contents

Mini camerax1
Stand X 1
RCA or BNC cable X1
AC adapterx

PICK UP ELEMENT	Single chip 1/4CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC: 720 ( H )× 480 ( V)	PAL: 720 ( H )× 576 ( V)
SENSOR DIMENSION	3.584mm( H )× 2.688mm ( V)
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.1Lux/F2.8
LENS & VIEW ANGLE	F2.8/ 90°
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
WEIGHT	6g
SIZE( LXWXH)	15.5X15.5X20mm
WORK CURRENT	DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT	DC:3.6V-24V
OPERATING TEMPERATURE	- 10° C ~ +50°C ,less than 90% RH
Connection	PIN1=> Red DC5V /12V P
