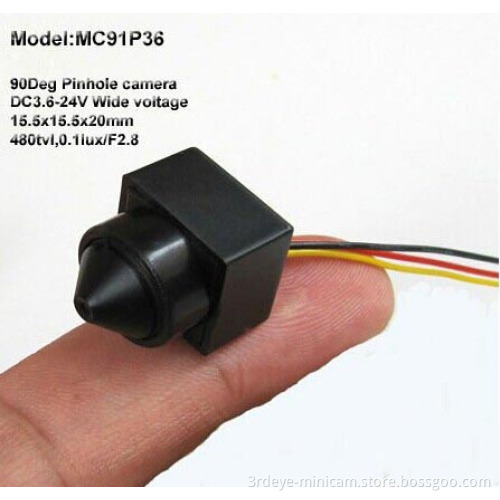

Mini Security Camera (3.6-24V wide voltage, 480tvl, 90 deg angle)

Get Latest Price

Payment Type:: T/T, Western Union, Paypal, Money Gram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union, Paypal, Money Gram

Product Description

Main Features

1. Small Size: Easy to install into narrow room and slim tube, etc.;
2. 90deg lens
3, 3.6-24 wide voltage, adapt different power system
4. High resolution, high sensitivity, high SNR;
5. Day & night dual mode auto switch;
6. Low Illumination, Low Current and power consumption;
7. CMOS sensor generation IV+DSP chip offer true color & HD video.

Usage

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.

Accessories:
RCA or BNC cablex1, AC adapter X1, User manual X1

PICK UP ELEMENT	Single chip 1/4CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC: 720(H)× 480(V)	PAL: 720(H)× 576(V)
SENSOR DIMENSION	3.584mm(H)× 2.688mm(V)
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.1Lux/F2.8
LENS & VIEW ANGLE	F2.8 / 90°
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm (Only MC91AP36)
WEIGHT	6g
SIZE(LXWXH)	MC91P36: 15.5X15.5X20mm MC91AP36: 15.5X15.5X22.5mm
WORK CURRENT	DC12V: 45mA DC5V: 95mA DC12V: 35mA
POWER REQUIREMENT	DC: 3.6V-24V DC12V: (5-16V )
OPERATING TEMPERATURE	- 10° C ~ +50° C, less than 90% RH
Connection	PIN1à Red DC5V /12V PIN2à Black GND PIN3à Yellow VIDEO OUT PIN4à White AUDIO OUT
