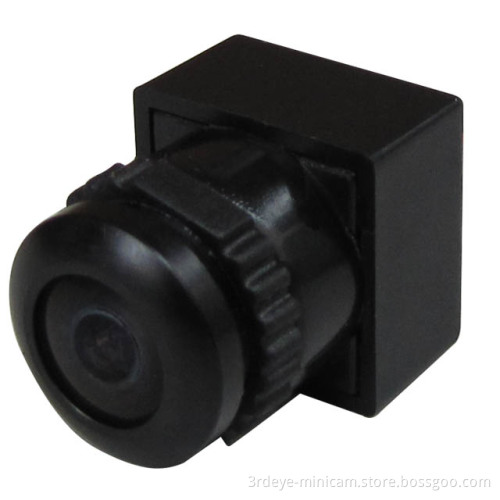

170 Deg Fish Eye Angle 480tvl High Resolution Security Mini Security Camera

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

Features & functions
170 deg view view angle
3.6-24V wide voltage
Small Size: Easy to install into narrow room and slim tube, etc.;
Low Illumination, Low Current and power consumption
NTSC/ PAL system

Specification:

170degree wide view angle, 3.6-24v wide voltage
Small Size: Easy to install into narrow room and slim tube, etc.;
High resolution, high sensitivity, high SNR;
Day & night dual mode auto switch;
Low Illumination, Low Current and power consumption;
CMOS sensor generation IV+DSP chip offer true color & HD video.

Package included:
Mini camera x1
RCA/BNC cable x1 (RCA default)
Power adapter x1
User manual x1

PICK UP ELEMENT	Single chip 1/4CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:720(H)×480(V)	PAL:720(H)×576(V)
SENSOR DIMENSION	3.584mm(H)×2.688mm(V)
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.1Lux/F2.8
LENS & VIEW ANGLE	F2.8 / 170°
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm
WEIGHT	8g
SIZE(LXWXH)	MC91B18:15.5X15.5X23mm; MC91AB18: 15.5X15.5X26mm
WORK CURRENT	DC12V: 45mA DC5V: 95mA DC12V: 35mA
POWER REQUIREMENT	DC:3.6V-24V DC12V:(5-16V )
OPERATING TEMPERATURE	- 10° C ~ +50°C ,less than 90% RH
Connection	PIN1àRed DC5V /12V PIN2àBlack GND PIN3àYellow VIDEO OUT PIN4àWhite AUDIO OUT
