Mini Camera with Audio

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

Model: MC91A

Features & functions

1. Small Size: Easy to install into narrow room and slim tube, etc.;

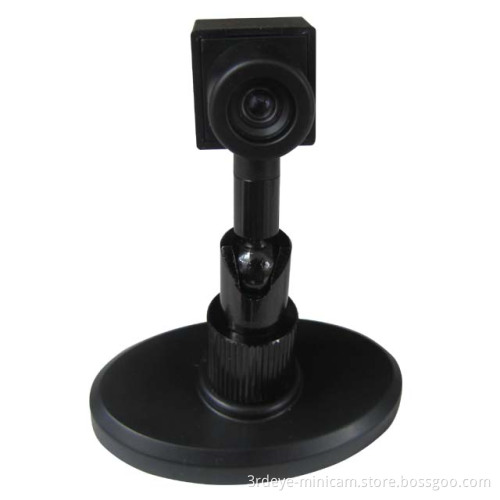

2. Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;
3. Camera stand can rotate 360 degrees, all-round monitoring
4. High resolution, high sensitivity, high SNR;
5. Day & night dual mode auto switch;
6. Low Illumination, Low Current and power consumption;
7. CMOS sensor generation IV+DSP chip offer true color & HD video.
8. Excellent audio

Usage

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module, then it can work with wireless receivers.

PICK UP ELEMENT	Single chip 1/4CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC: 720 ( H )× 480 ( V )	PAL: 720 ( H )× 576 ( V )
SENSOR DIMENSION	3.584mm ( H )× 2.688mm ( V )
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.05Lux/F1.2
LENS & VIEW ANGLE	F1.2 / 90°
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm AUDIO OUT: 1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm (Only MC91A)
WEIGHT	5g
SIZE ( LXWXH )	MC91: 15.5X15.5X20mm; MC91A: 15.5X15.5X22.5mm
WORK CURRENT	DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT	DC: 3.6V-24V
OPERATING TEMPERATURE	- 10° C ~ +50° C, less than 90% RH
Connection	PIN1 à Red DC5V /12V PIN2 à Black GND PIN3 à Yellow VIDEO OUT PIN4 à White AUDIO OUT
