5.8GHz 5.0 inch Battery Powered Wireless 8chs Mini Portable FPV DVR Lcd Monitor

Mini size and portable recorder with fashionable & new design;
5-inch super large HD screen (800X480pix), which provides clear and smooth image;
Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
Supports storage up to 32G TF card, which records up to 32 hours;
Supports wireless signal from total 48 channels among 2.4GHz & 5.8GHz (within & beyond) frequency;
Folding hidden external antenna assures excellent wireless receiving;
Supports AV IN function: Receiving signal from wired cameras;
Photo function: It can take, review & store pictures;
Supports intelligent motion detect video recording;
Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
Seamless continuous record: No intermittent recording, it will not miss any detail and wonderfulness;
Support power-saving mode: Automatic shutdown, automatic off-screen;
Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions.;
It's of high compatibility, which supports almost all computer operating system, including MAC;
Supports multi-language

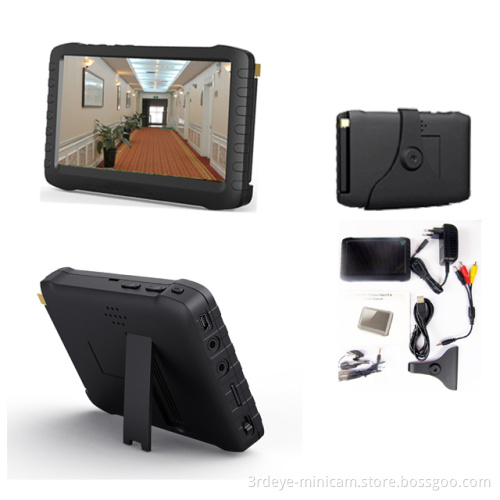

Photo shows:
5.8GHz 5.0 Inch Battery Powered Wireless 8chs Mini Portable Fpv DVR LCD Monitor

Items			Value
Wireless Receiving	Wireless freq.	2.4GHz–8 channels	CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
		Within 5.8G-A 8 channels	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
		Beyond 5.8G-B 8 channels	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
		Within 5.8G-C 8 channels	CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
		Within 5.8G-D 7channels for FPV	CH1: 5740MHz; CH2: 5760MHz; CH3: 5780MHz; CH4: 5800MHz. CH5: 5820MHz; CH6: 5840MHz; CH7: 5860MHz; CH8: SPI
		Beyond 5.8G-E 7 channels for FPV	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: SPI
	Sensitivity		-88dB
	Receiving distance		100 meters
AV IN	TV system		NTSC / PAL
	Output voltage		3.6-4.2 V
HD 5-inch LCD screen	Active area		108mm (W) X 64.8mm(H)
	Resolution		800 X 480 Pixel
	Luminance for LCM		200 cd/ m2
Cape clear 5-inch LCD screen	Active area		118mm (W) X 62.8mm(H)
	Resolution		480 X 272 Pixel
	Luminance for LCM )		300cd/M2
Video	Resolution		720576 / 640480
	Video compress		MPEG-AVI 30fps
	Play format		MPEG-AVI
Audio	Frequency		20HZ-20KHz stereo
	Earphone Output		Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker		1W
Photo	Format		JPG/JPEG
Storage	External SD card		TF card 1GB-32GB ( optional )
	32GB recording time		10-32 hours
	1GB photos		15625pcs
Operating system	PC		Windows & Mac OS
	Port		USB 2.0
	Language		Multiple
Power	Voltage		DC 5V
	Current(receiving mode)		660MA
	Current( recording mode)		680MA
	Current ( recording with off-screen mode )		340MA
	AC adapter		DC 5V 2A
	Built-in battery		Li-battery 3200Mah
Standby time	Wireless record		≥9.5 hours(off-screen); ≥5hours ( on-screen )
	Wired record		≥12 hours(off-screen); ≥6hours ( on-screen ) *LED camera not included.
Size (L x W x H)			131mm x 86mm x 18mm
Weight(g)			205g
