50 Pairs 24AWG CCA Cat3 Telephone Cable

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong China
Payment Type:	L/C, T/T, Western Union

Product Description

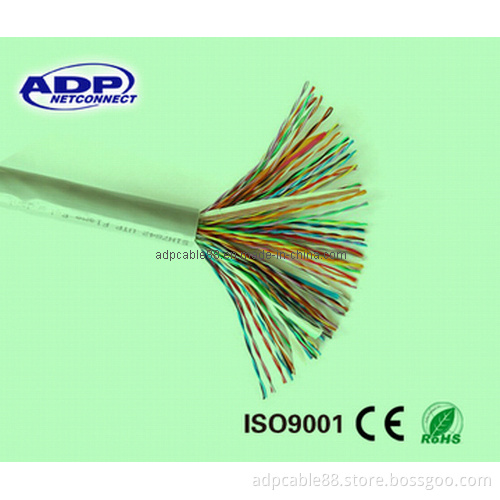

50 Pairs CCA Cat3 Telephone Cable
Specifications
Conductor: 0.35/0.4/0.45/0.5/0.56mm Bare copper/CCA/CCAG/CCS, rip cord, New PVC/LSZH. ISO/IEC11801, IEA/TIA568B, factory price
Conductor:
Material: CCA
Number of pairs: 50pairs
AWG: 24awg
Conductor diameter: 0.50± 0.003mm
Insualtion:
Material: HDPE and FRPE
Diameter: 0.924± 0.005mm
Average thickness: 0.212mm
Minimum point thickness: 0.2095mm
FILLING: Petrolatum or without jelly filled
With Braid Shield and Al Foil
Sheath:
Material: HDPE
Nominal diameter: 6.5± 0.2mm
Average thickness: 1mm
Minimum point thickness: 0.9mm
Operating temperature range: -10to 70C
Minimum bend radius (install): 8xOD
Flame test: CMX, CM, IEC60332-1
Reference standard: TIA/EIA568B, IEC/ISO11801
Our Services
1. Free samples
2. OEM serviced
3. Best price, Best quality, Best service(we'll reply all our customers in 3 hours, any questons, pls call us at anytime )
Company Information
We're a proffessional factory of cable in Shenzhen China, with 12years of experience in this field and 8years exporting experience.
Employees: 150
Export countries: Europe, the Middle East South America. Like Russia, Ukraine, Brazil, Turkey, Columbia, Saudi Arabia ect
Products: All cables, cable accessories.
Norm compliance: Communication cables comply with TIA/EIA568B-2, CE ISO RoHS are approved.
Production capacity: 2000rolls/day
