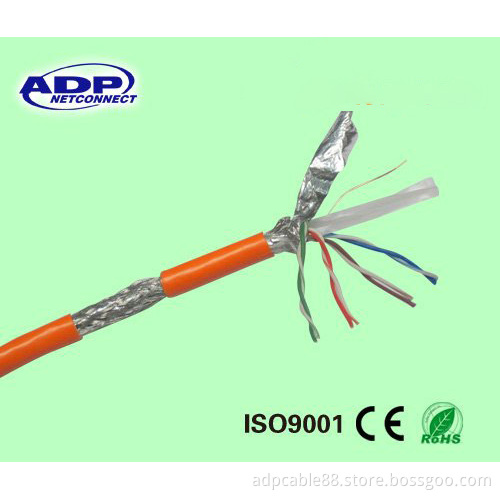

0.5mm SFTP Cat5e LAN Cable LSZH

0.5mm SFTP CAT5E LAN cable LSZH
Application:
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring
Cable Construction:
Conductor Dimension: 0.50mm 0.51mm
Core Dimension: 0.91mm 0.92mm
No. Of Pairs: 4
Nom. OD: 5.3mm 14.0mm 13.0mm
Type of Jacket: PVC/PE PVC/PE PVC/PE
Electrical Characteristics:
Frequency(MHz): 1 4 10 20 31.25 62.5 100
Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0
Impedance(ohm): 100 100 100 100 100 100 100
Return Loss(dB): 17 20 22 20 18 16 15
NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
ELFEXT: (dB/100m): 61 49 41 35 31 25 21
PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21
Packing:
1) Packing Lengths:
305m/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
