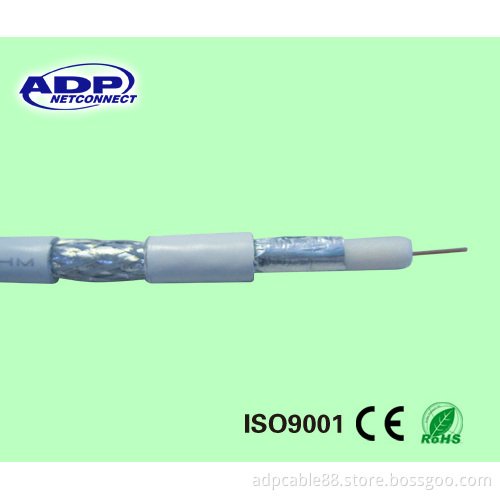

1000ft RG6 RG11 Coaxial Cable
1. Inner Conductor: CCS/BC;
2. Description
RG6
1.02mm CCS/BC conductor +Al foil+Braid+PVC jacket 7.00mm
RG11
1.63mm CCS/BC conductor + 7.11mm PE foam + nonbonded/bonded/double aluminum foil + aluminum wire/BC/TC braiding + 10.00mm PVC jacket
3. Cable Construction Details:
Inner conductor 1.02mm
Material Copper Clad Steel
Dielectric 4.57mm
Thickness 1.78mm
Material Foam Polyethylene
Shield
Material Aluminum/Polyester/Aluminum with bonded
Coverage 100%
Braiding
Strand diameter 0.12mm
Carriers 16
Ends 4
Material Aluminum wire
Coverage 60%
O. D 4.75mm
Jacket
Thickness 0.78mm
Material PVC
Color White
O. D 6.91mm
