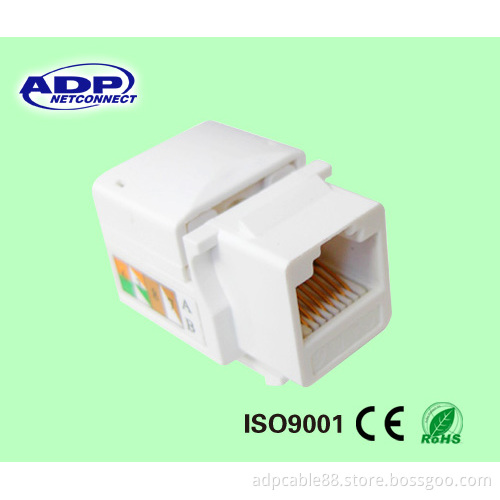

Keystone Jack with Cheap Price RJ45 Cat5e CAT6 Wall Jack Male UTP RJ45 Keystone Jack RJ45

keystone jack with cheap price (rj45 cat5e cat6 wall jack male utp rj45 keystone jack rj45)


Specifications:


Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 180 Degree
Termination: Krone- 110- DUAL Type

Materials:


Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.

You've already run your telecom network's cross-connect cablingnow how will you terminate it intoKeystone jacks? With our easy-to-follow wiring guide, you'll have your Cat5, Cat5e and Cat6 jacks wired, installed and ready to go in no time!

STEP 1
Strip approximately 1.5 inches of jacket from the twisted-pair cable.
STEP 2
Separate the twisted wire pairs from each other; then untwist each pair. Straighten wire ends out as much as possible.

STEP 3
Remove the jack's protective cap.

STEP 4
Once the cap has been removed, you'll notice that there are wire configurations printed near the termination slots. If you are given a choice between A" and B" configurations, choose whichever one you'd like, just be sure to remember which one you're using when it comes time to terminate the cable's other end with a jack! Configurations must be the same at both ends of the network cabling.

STEP 5
Place all 8 wires into the center of the jack; from there, divert the wires into their correct slots, pressing them as far down into the termination slots as they will go. Excess wire length will be extending out of the sides of the jack.

STEP 6
It's easiest to punch down wires if you do one side of the jack at a time. Make sure that the punchdown tool'sCut" side is aligned with the outer edge of the jack, and that the jack assembly is resting on a hard, sturdy surface that is able to withstand force.

To punch down each wire, press down on the punchdown tool until you hear a loud click and simultaneous, metallic-sounding ping". These noises are indicators that the punch-down has been done correctly; if you don't hear them, you'll know that the punchdown hasn't been successful.

STEP 7
Check the quality of the punches. Inspect each termination slot along the outer edge of the jack; each wire should be firmly anchored at the bottom of its slot, and the wires' copper conductors will be visible.

STEP 8
Snap the jack's cover back on, over the wires.

STEP 9
Firmly insert the jack assembly into the faceplate from the back; be sure that the jack's clip is facing up, so that it properly snaps into the faceplate port.
