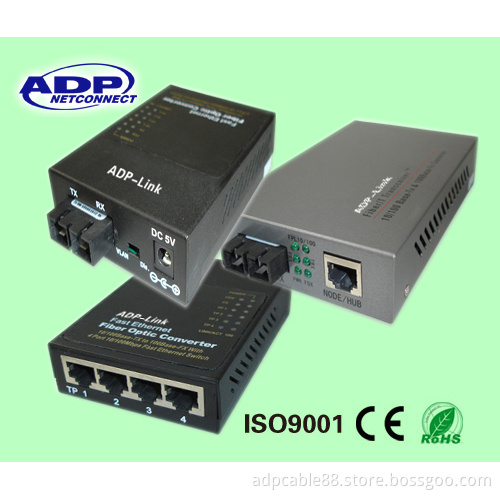

Fiber Optic Converter

Fiber Optic Converter
1. High-speed2. Converter certificated By RoHS. FCC. CE3. Advanced chips & 1G Transmission
Fiber Optic Converter
1. High-speed2. Certificated By RoHS. FCC. CE3. Advanced chips & 1G Transmission
4. Perfect connect between converters and routers.
5. Support CONSOLE, TELNET, SNMP, WEBSERVER, etc.
1. Applications:
-apply to ready to rise to 10M extended enterprise network bandwidth 100M -apply to images, voice and other multimedia data on an integrated transport network - point applies to the computer signal transmission in need of the occasion -widely used for computer data transmission network to meet a variety of business needs -apply to the campus broadband network, broadcasting network and intelligent residential broadband fiber-to-floor fiber to the home data transfer -with the switches and other computer network equipment can be combined to form: -chain, star, ring-type network and other computer networks
2. Features:
Adopt pluggable design, easy installation, support hot-plug
Adopt wall mount design, easy to maintain
In the front panel, there is power interface, switch, fiber port, RJ45 port and LED indicator, easy for us to control and monitor
Adopt module design, single fiber, applicable for rack, easy configure and upgrade
Metal housing, grey color, ingenious and compact, perfect shielding performance, anti-jamming
Adapt advanced auto-negotiation technology, no need electric and optics adjustment when installing them.
Internal/external power supply(optional)
Product Features:
Support full-duplex and half-duplex flow control and have auto-negotiation function
Support Vlan data transmission and can be used together with the switches which comply with IEEE802.1Q
Support LINK LOSS remote warming function
REMOTE PAUSE guarantees reliable data transmission
Support of 10Mbps, 100Mbps and 1000Mpbs auto negotiation, easy to upgrade
Fine cooling function guarantees the reliable long time working status.
Internal power supply AC220V, -48VDC and 5V external power supply(optional)
Reduce the network building cost by using singe fiber Extends the network transmitting distance to 100km or more in the single fiber transmission environment
Adapt sole build in manageable technology to transmit not only IP data but also manageable data.
3. Working Environment:
Operating Temperature: 0C~50C
Storage Temperature: -40C~85C
Relative Humidity: 5%~95% non-condensing
4. Connection
The network device (work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack of optical transceiver through twisted-pair.
And the multi/single mode fiber is connected to SC/ST fiber interface of the optical transceiver. Then switch on.
The corresponding LED is on for correct connection. (See the table below for the LED indicator lamp).
5. Notice
1. This product is suitable for indoor application.
2. Put on the dust cover of fiber interface when not used.
3. It is forbidden to stare at the TX fiber-transfer end with naked eyes.
4. Single optical fiber transceiver must be used in pair (See the attachment description in delivery).
5. At least 15 seconds between turn on and turn off.
