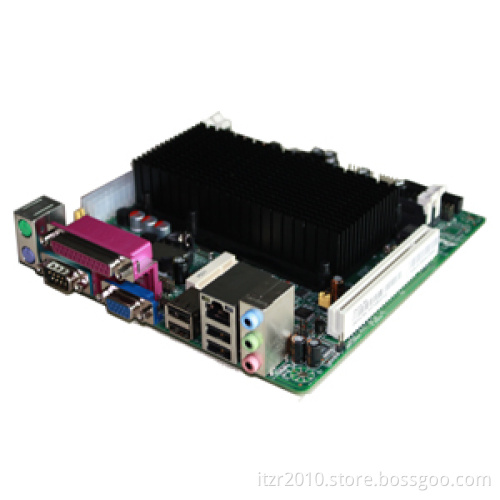

Intel Atom D410 D425 D510 D525 Embedded Motherobard With Dual LAN
  • Intel Atom D410 D425 D510 D525 Embedded Motherobard With Dual LAN
Intel Atom D410 D425 D510 D525 Embedded Motherobard With Dual LAN

Intel Atom D410 D425 D510 D525 Embedded Motherobard With Dual LAN

Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: T/T
Product Description
Product Description

Product Description

D410/D425/D510/D525 Functions List

Ver. Version 1.0 Version 1.1
Model Name D410/2c(D425/2c) D410/2c+(D425/2c+) D525/2c D425/4c D525/4c
Chipset D410/D425 D410 or D425 D525/2c D425 D525
CPU 1.66g/1.8g 1.66g/1.8g 1.8g 1.8g 1.8g
VGA Support Support Support Support Support
COM Port 2 COM Ports 2 COM Ports 2 COM Ports 4 COM Ports 4 COM Ports
USB Ports 4+4 4+4 4+4 4+4 4+4
SATA Ports 2 2 2 2 2
Dual Lans 100/1000m LAN1 100m 1000m 1000m 100m 100m
100/1000m LAN2 / 1000m / /

Sound 8-CH / 7.1 / 7.1
6-CH(HD) 5.1 5.1 5.1 /
Sound Jack 3 Holes(1*3) 6 Holes(2*3) 3 Holes(1*3) 3 Holes(1*3) 6 Holes(2*3)
Lvds Support Support Support Support Support
Mini-IDE / 1 / / 1
Lpt Pin Connector Pin Connector Pin Connector Back Connector & Pin Connector Back Connector & Pin Connector
Mini Pcie Support Support Support Support Support
CF Card Socket / Support / N/a N/A
Spdif / Support / N/a N/A

DIMM Slot 2 2 2 2 2
PCI Slot 1 1 1 1 1
Heatsink/Fan Cooler Heatsink With Fancooler(2 Balls Bearing)or Fanless Heatsink With Fancooler(2 Balls Bearing)or Fanless Heatsink With Fancooler(2 Balls Bearing)or Fanless Heatsink With Fancooler(2 Balls Bearing)or Fanless Heatsink With Fancooler(2 Balls Bearing)
Form Factor Mini-Itx Mini-Itx Mini-Itx Mini-Itx Mini-Itx
Power ATX Power ATX Power ATX Power ATX Power ATX Power
