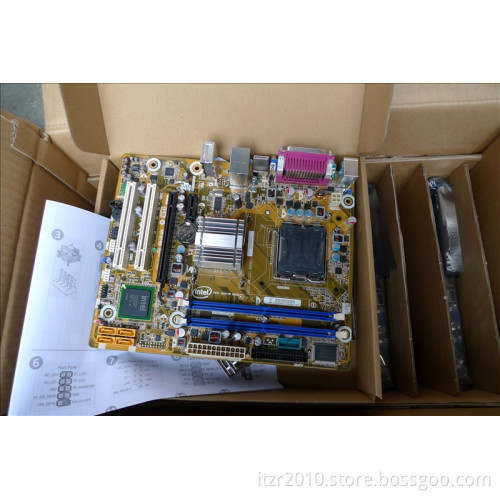

Intel Original Motherboard DG41CN

Features and configurations
Form factor Micro-ATX (9.60 inches by 7.80 inches)
AA# (Altered Assembly) E82429-xxx
BIOS ID string CNG4110H. 86A
Processor At product launch, this desktop board supports:

Support for an Intel® Core™ 2 Quad processor (95 W TDP) in an LGA775 socket
Support for an Intel® Core™ 2 Duo processor in an LGA775 socket
Support for an Intel® Pentium® Processor in an LGA775 socket
Support for an Intel® Celeron® Processor in an LGA775 socket
View all compatible Intel® Processor numbers

Memory Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 800 / 667 MHz DIMMs
Support for up to 8 GB¹ Of system memory

Chipset Intel® G41 Express Chipset

Audio Intel® High Definition Audio² Subsystem in the following configuration:

8-channel (5.1 + 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek * ALC662 audio codec

LAN support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Realtek * 8111C Gigabit Ethernet Controller
Peripheral interfaces Up to eight USB 2.0 ports
Four Serial ATA 3.0 GB/s ports
One diskette drive interface
PS/2 keyboard and mouse ports
One Serial Port
One Serial header
One Parallel Port

Expansion capabilities One PCI Express 1.1 x 16 bus add-in card connector
One PCI Express* 2.0 x 1 bus add-in card connector
Two PCI Conventional bus connector

Video Intel® GMA X4500 onboard graphics subsystem

Warranty 3-year warranty
Advanced Warranty Replacement (AWR)
